0.3/1/3/6/10/20Kg Load Suction Cup Vacuum Pump Solenoid Valves PWN Cable Various Parts For Robot Arm DIY Kit Programmable Robot
5.0 (2 votes) | 28 orders
Price:
US $19.19 - 83.38
Discount Price:
US $
13.03 -
68.58
-32%
- Color
-
-
SuperRobot is High-tech, Educational, Smart
We are an enterprise specializing in the development of science and technology, technology, education and teaching. This programming robot parts is a teaching programming robot parts designed by our science and technology center, and it is also the enlightenment of engineers and school students learning robots, we will release more technology, education, advanced new products, I believe you will like our robot parts.
By the way, if you like our store, Please add our store to your Favorite Stores, You can get our New arrival and Discount information in time.

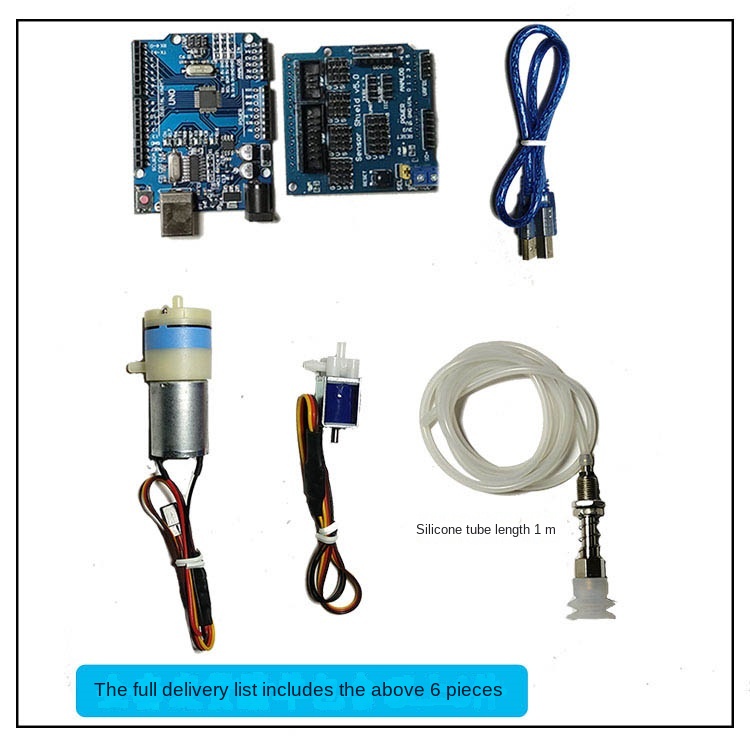

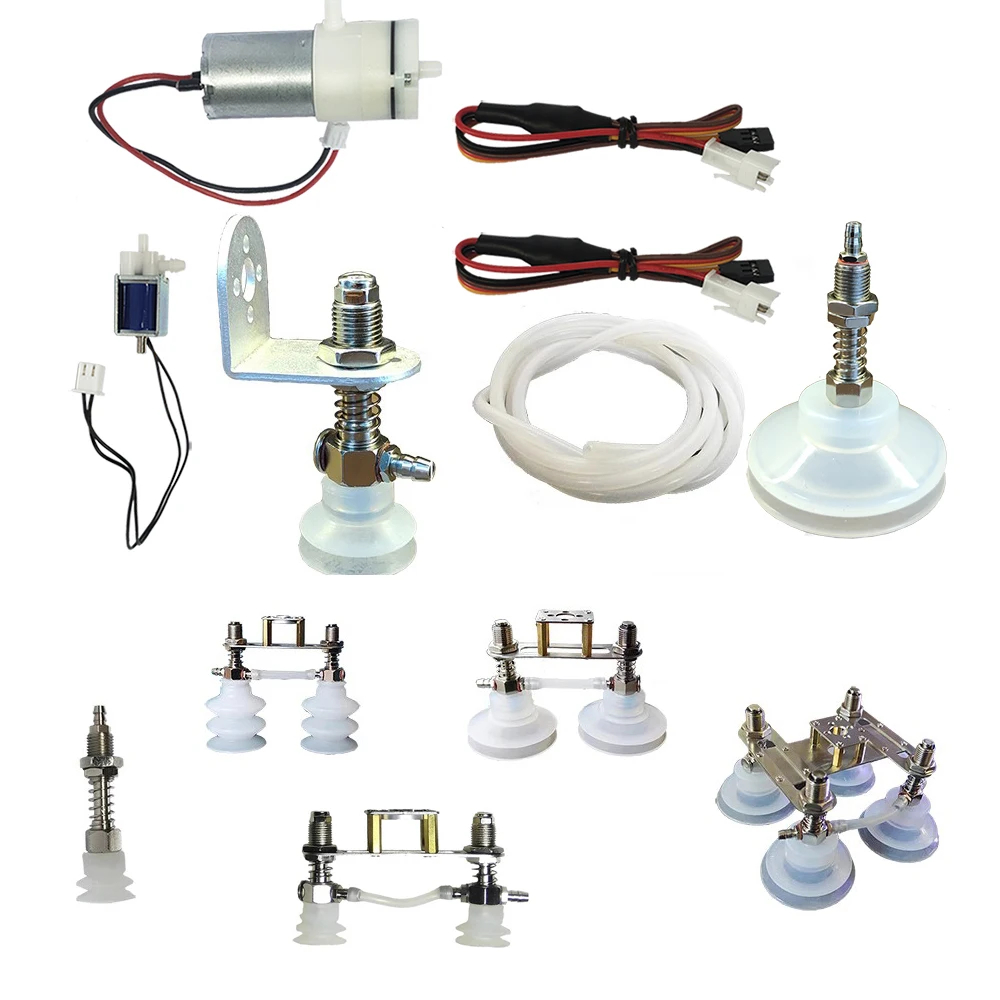

0.3/1/3/6/10/20Kg Load Suction Cup Vacuum Pump Solenoid Valves PWN Cable Various Parts For Robot Arm DIY Kit Programmable Robot

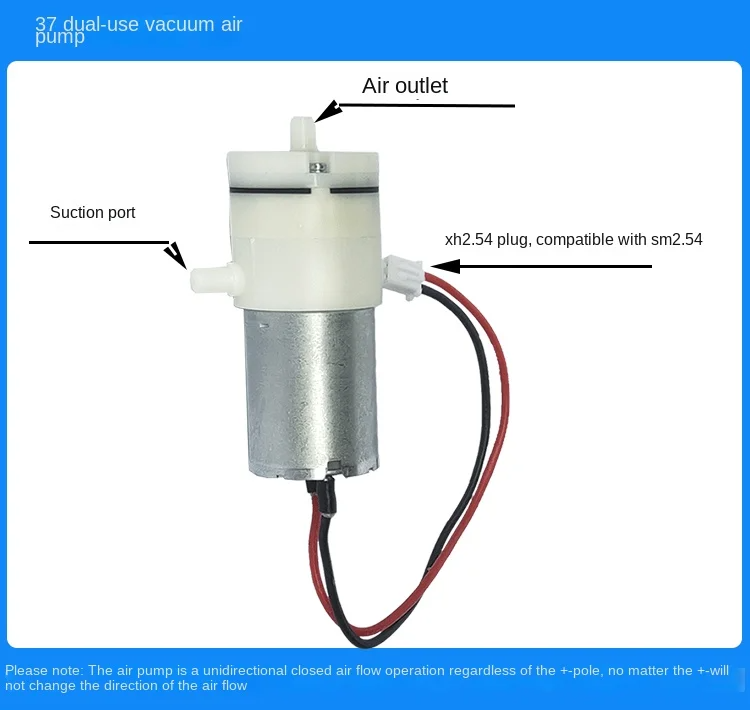

Vacuum air pump *1
Three-way electronic valve *1

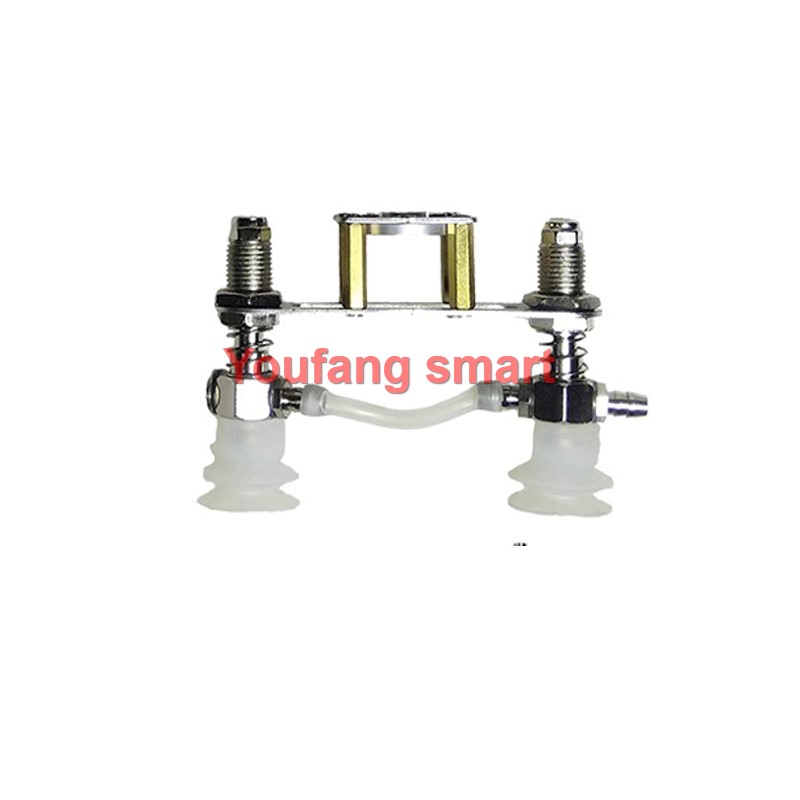

Vacuum telescopic connecting rod + suction cup *1

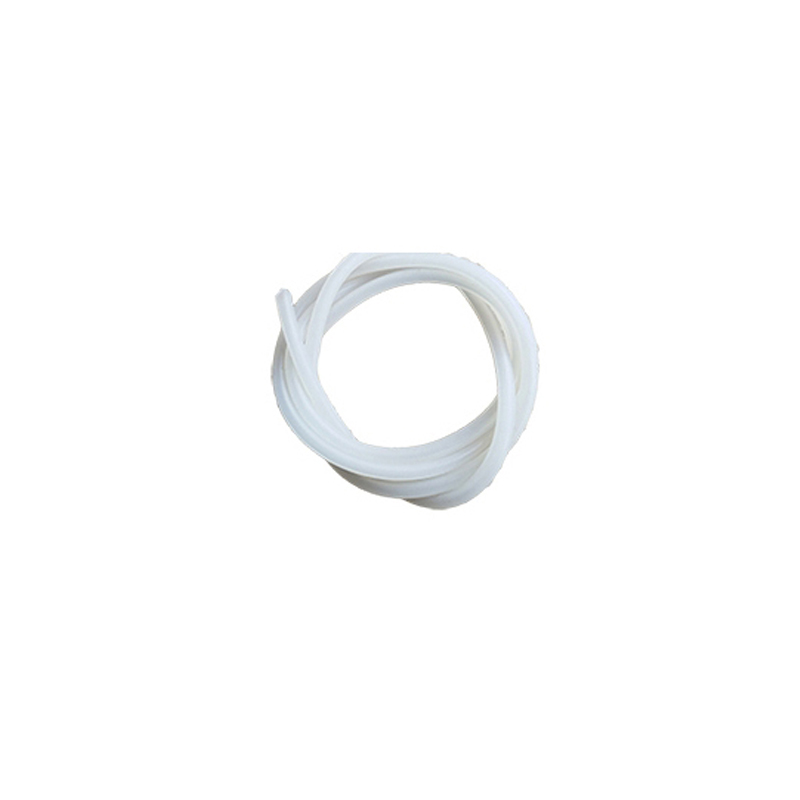

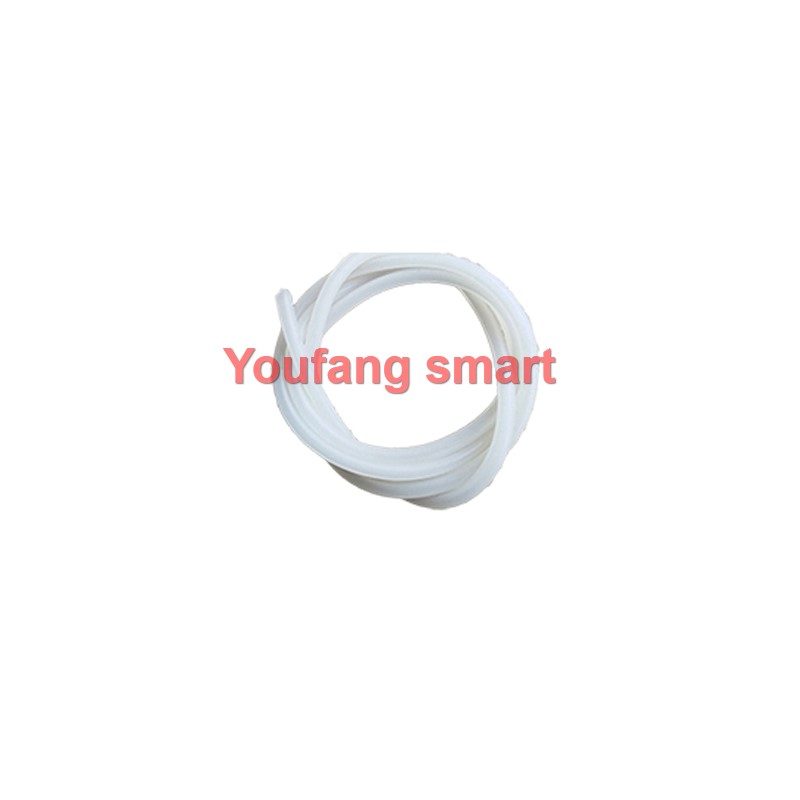

Silicone trachea 800mm*1

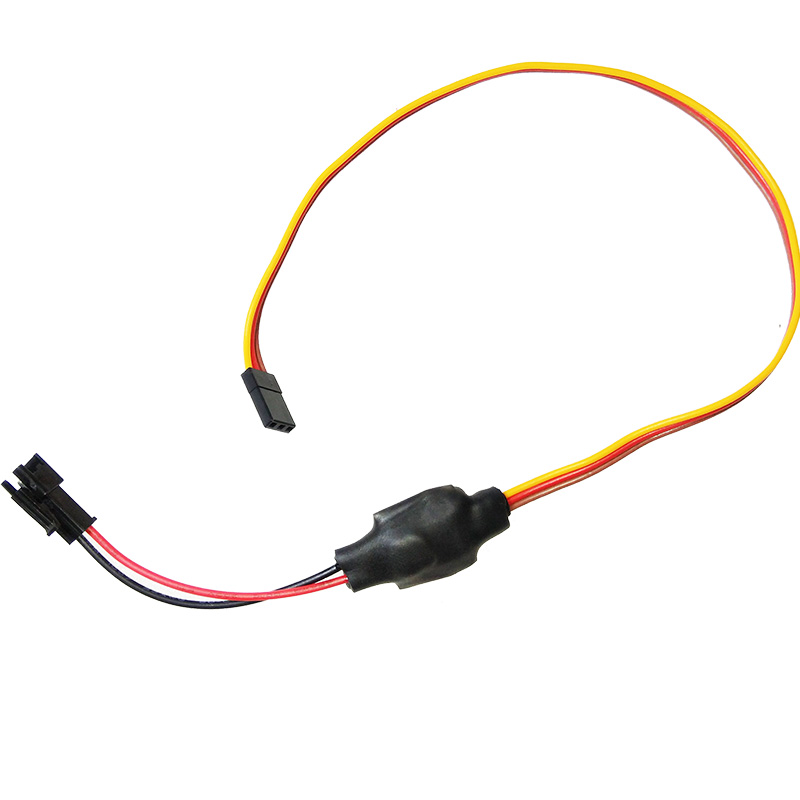

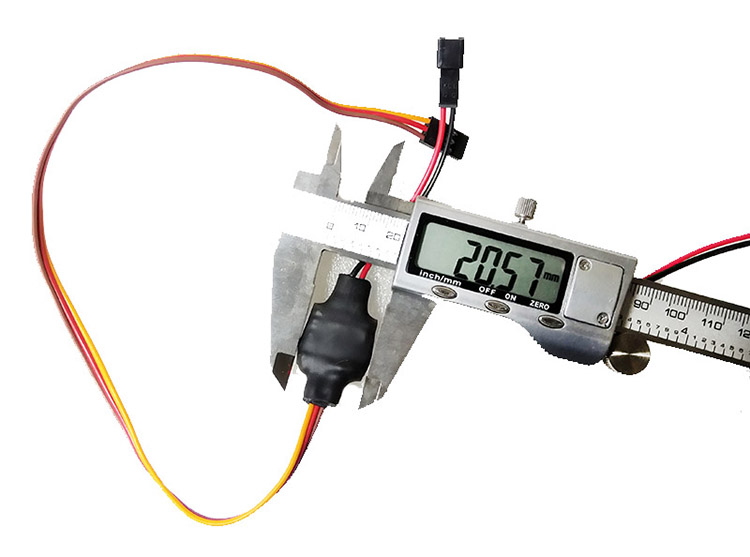

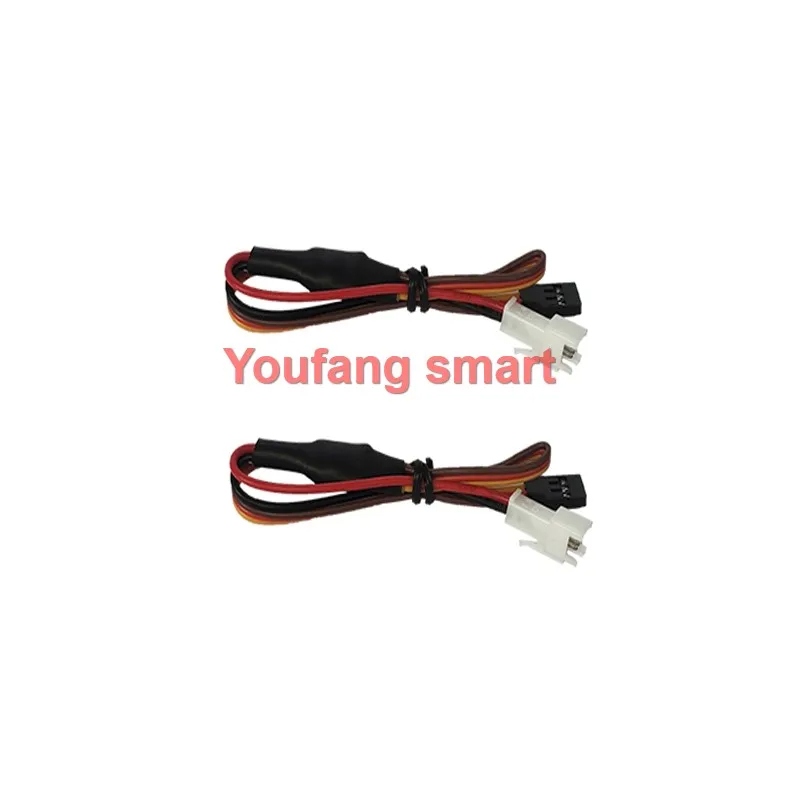

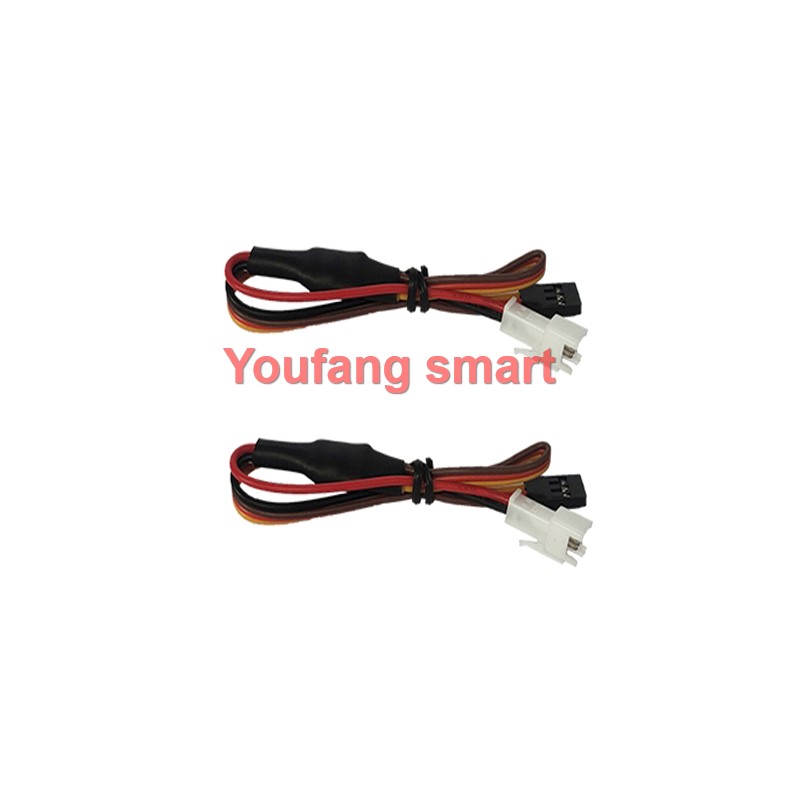

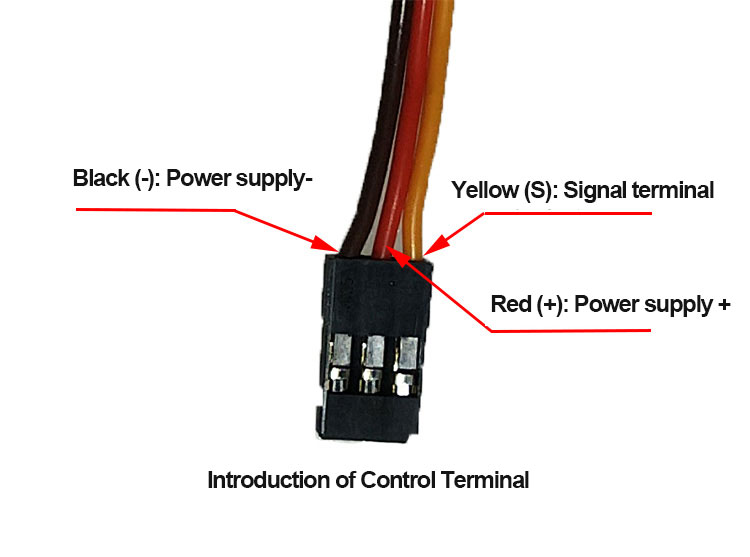

PWN digital electronic switch *1

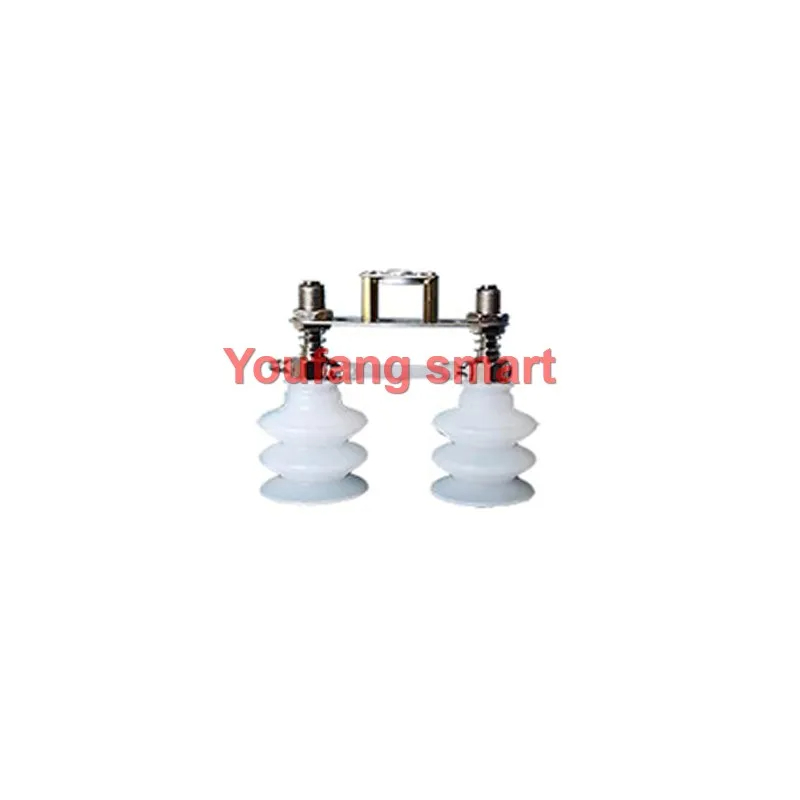

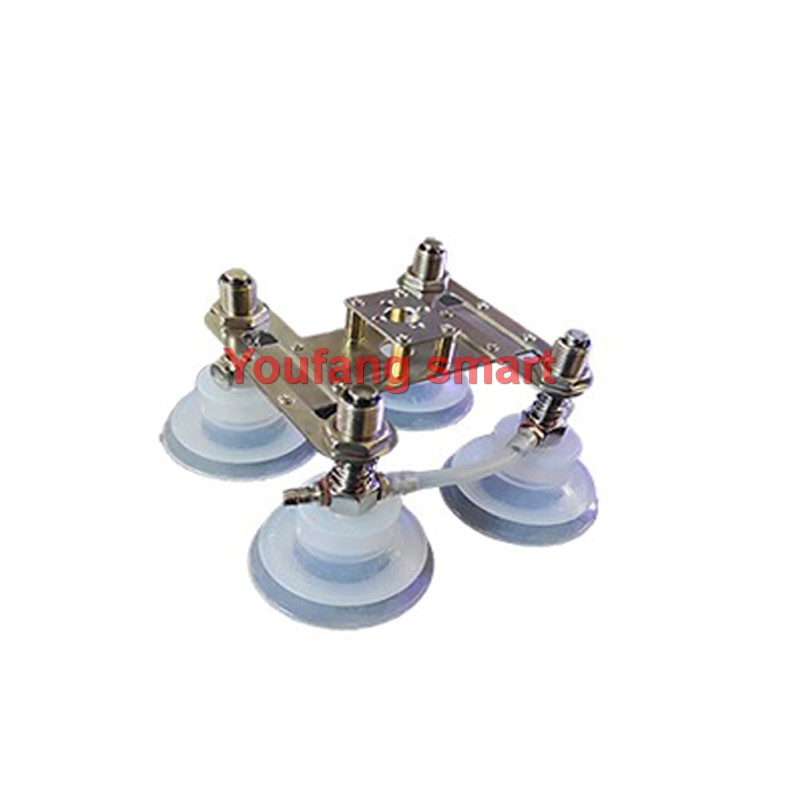

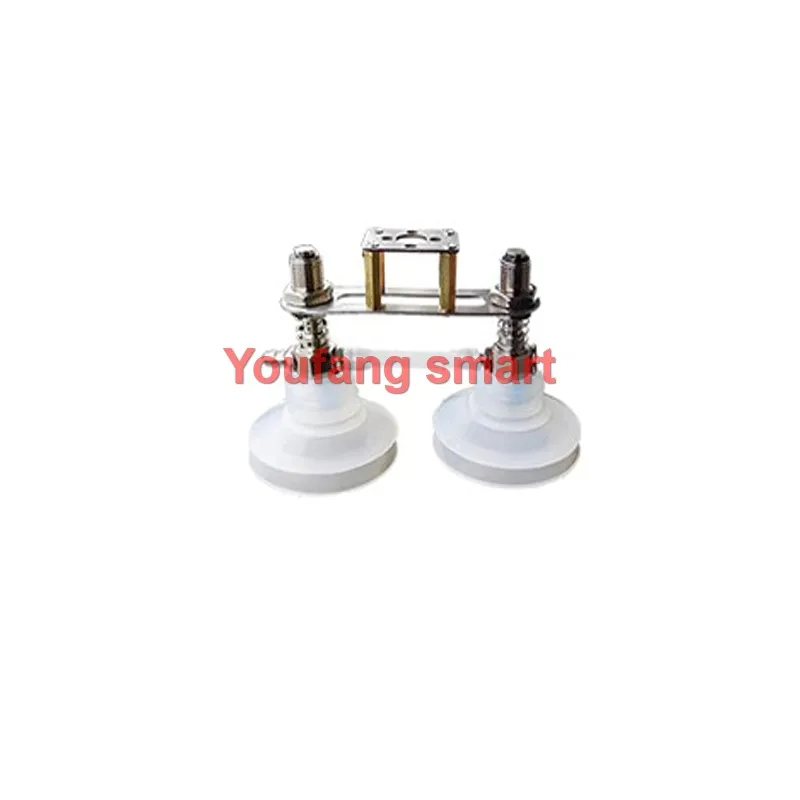

0.3/1/3/6/10/20 suction cup
Specification:

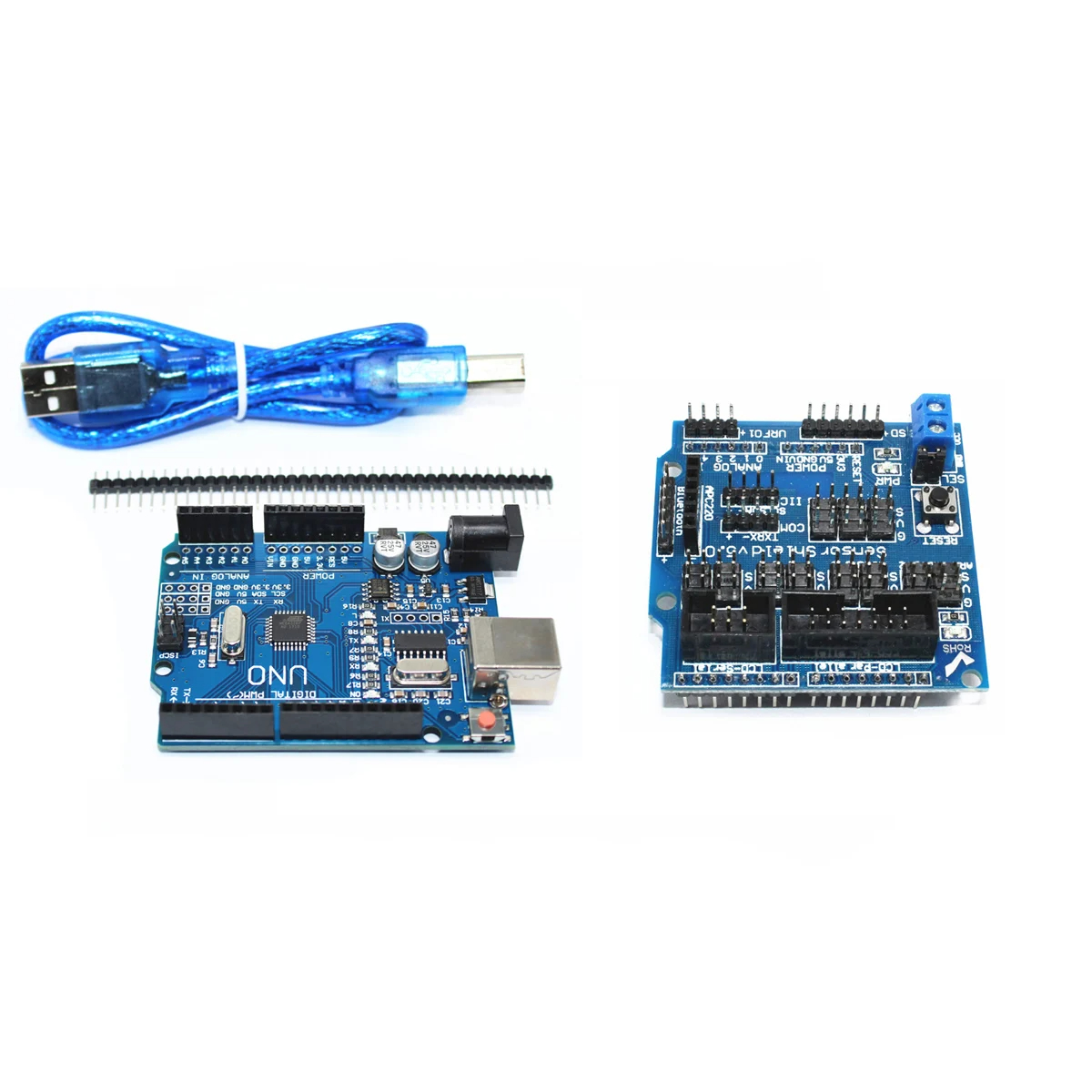

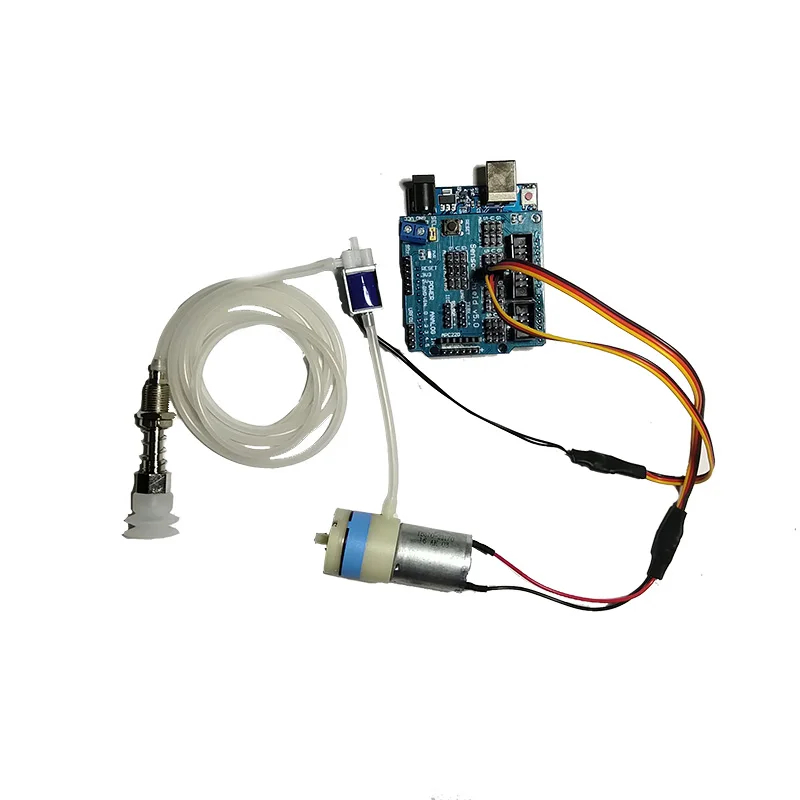

3+sensor shieldv5.0 expansion board has strong expansibility and good open source compatibility. With v5.0 expansion board, ShielDV5.0 can be connected to external power supply to facilitate cable insertion and avoid tedious welding.

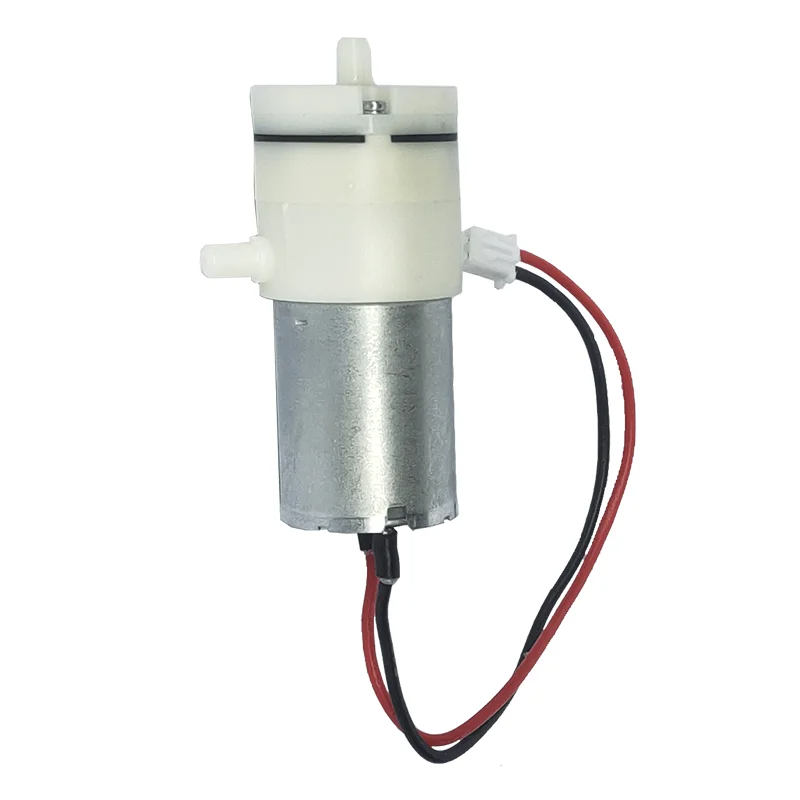

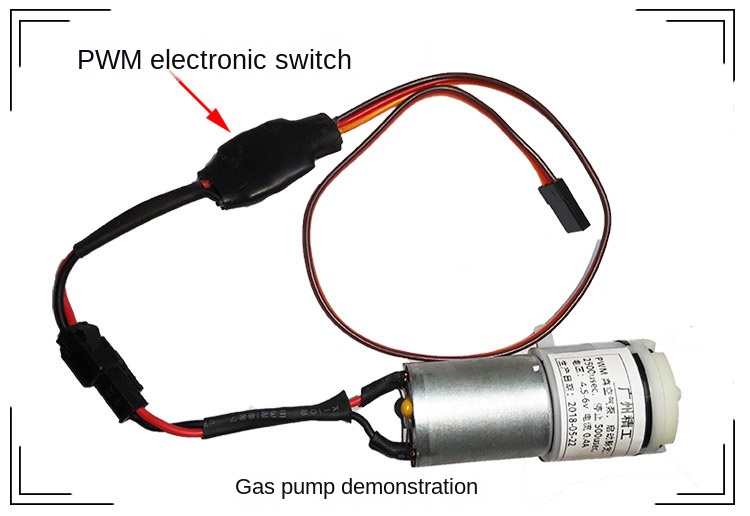

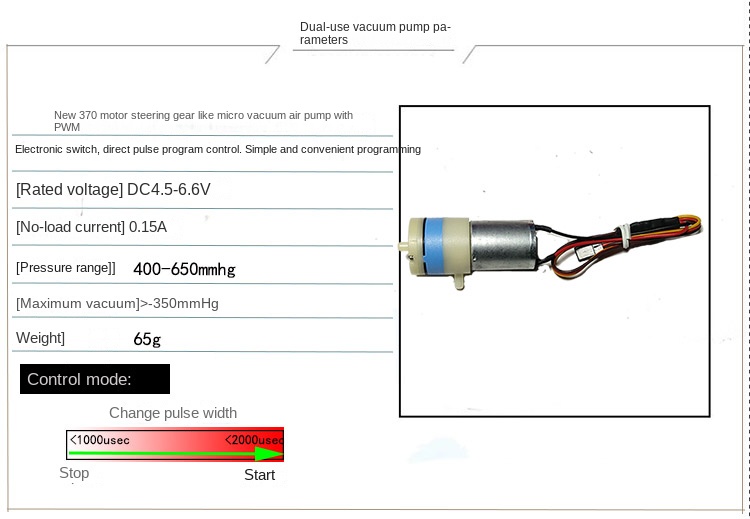

The new 370 motor steering gear is like a miniature vacuum air pump with PWM electronic switch, direct pulse program control. Simple and convenient programming

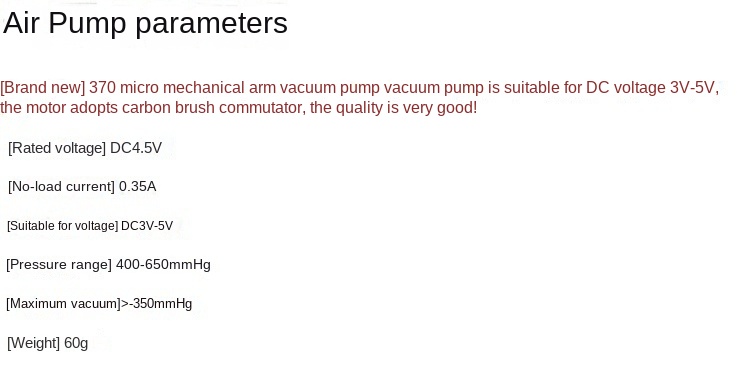

Suction Cup:Voltage: 4.5-6.6 VDC
No-load current: 0.15A
Pressure range:400-650mmhg
Maximum vacuum: 350mmhg
Weight:65g

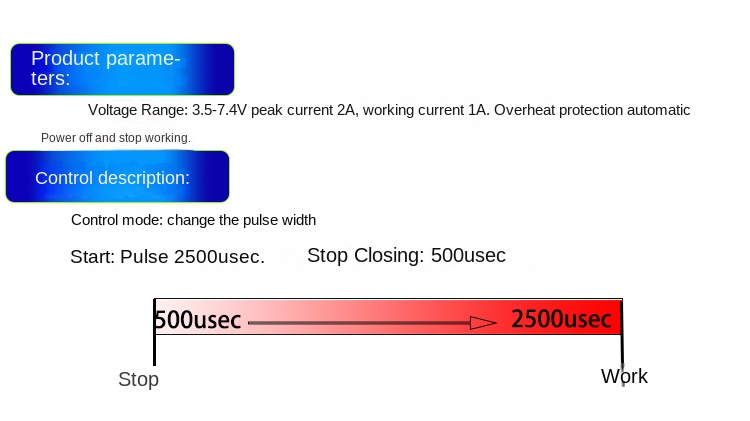

Control mode: Change pulse width
Stop. 1000usec
Start up 2000used

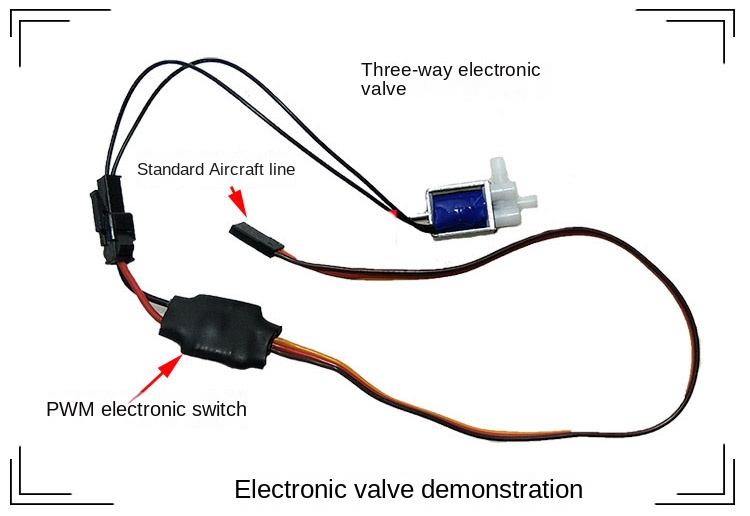

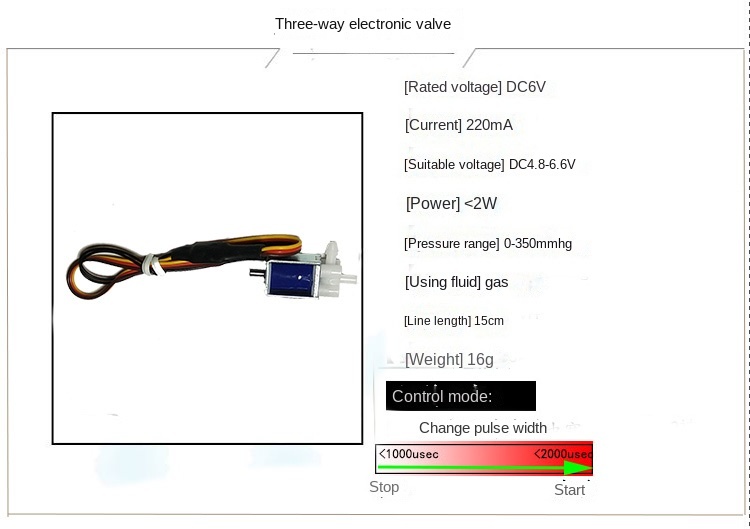

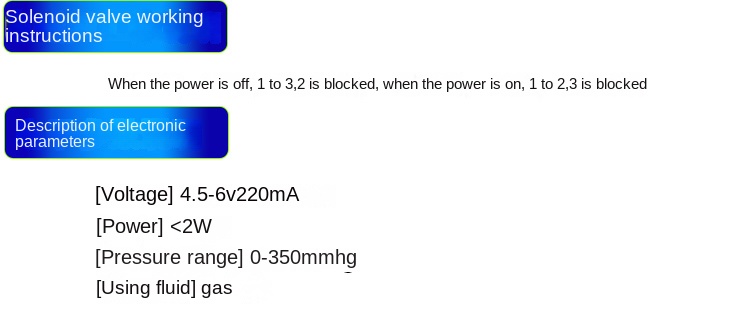

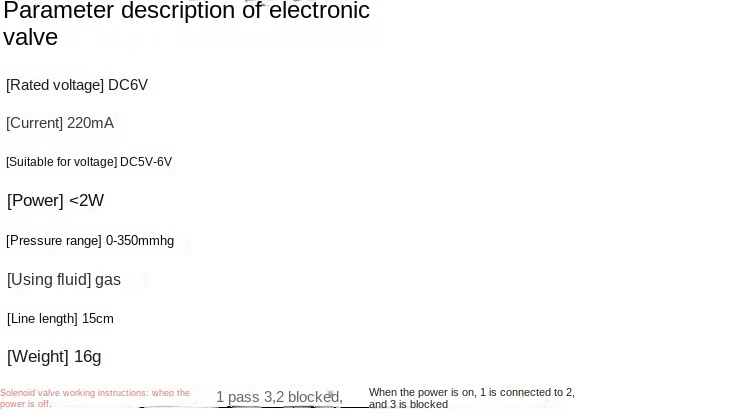

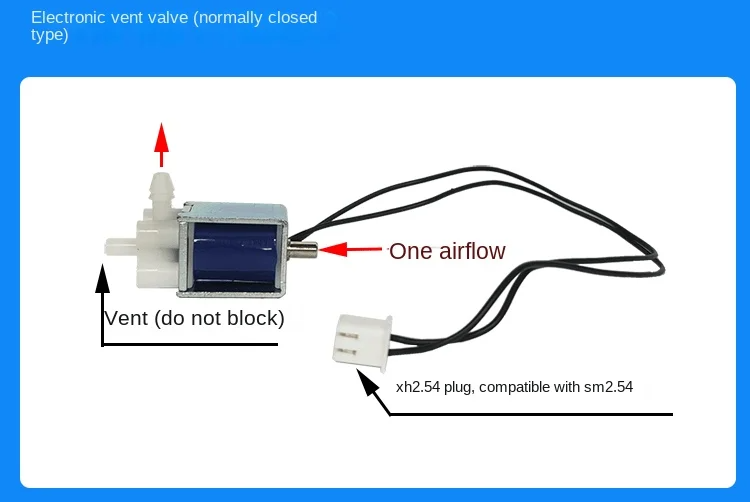

Three-way electronic valve
Rated voltage:DC 6V
Current：220mA
Suitable voltage：DC4.8-6.6VDC
Power:2W
Pressure range: 0-350mmhg
Thread length:15cm
Weight:16g
Control mode: Change pulse width
Stop. 1000usec
Start up 2000used

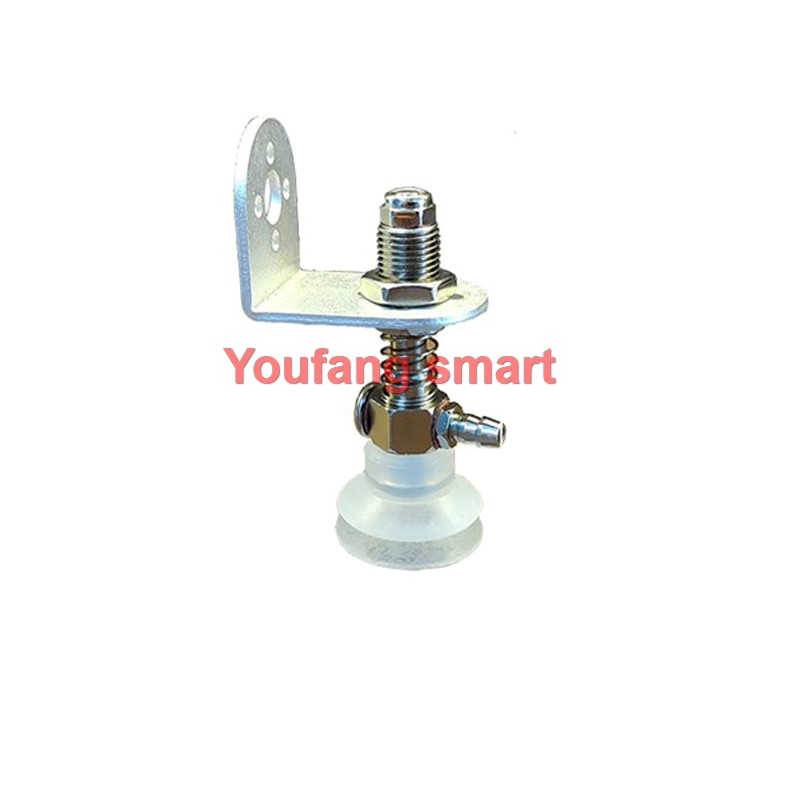

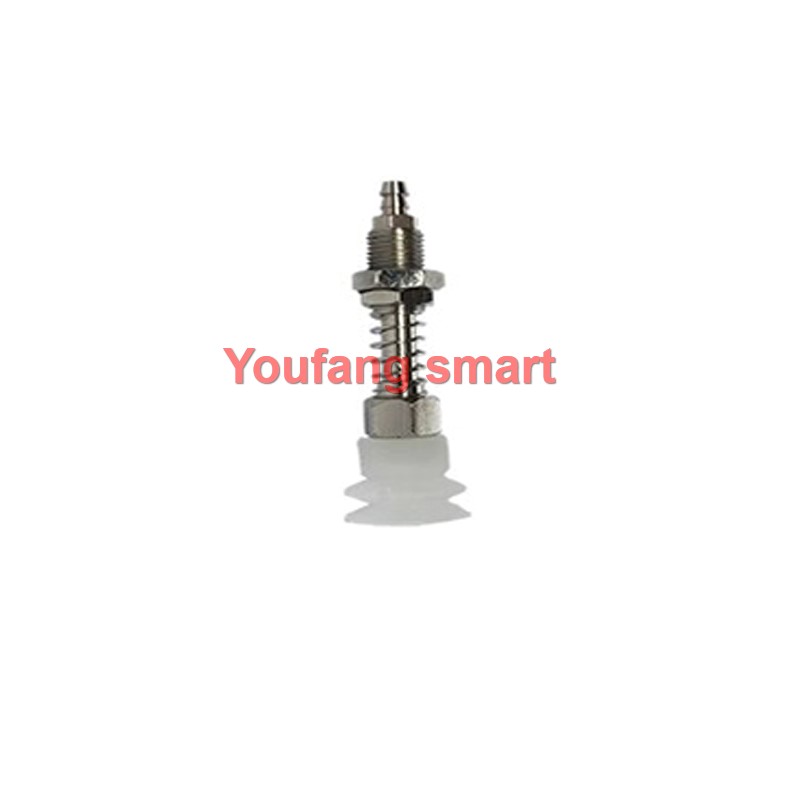

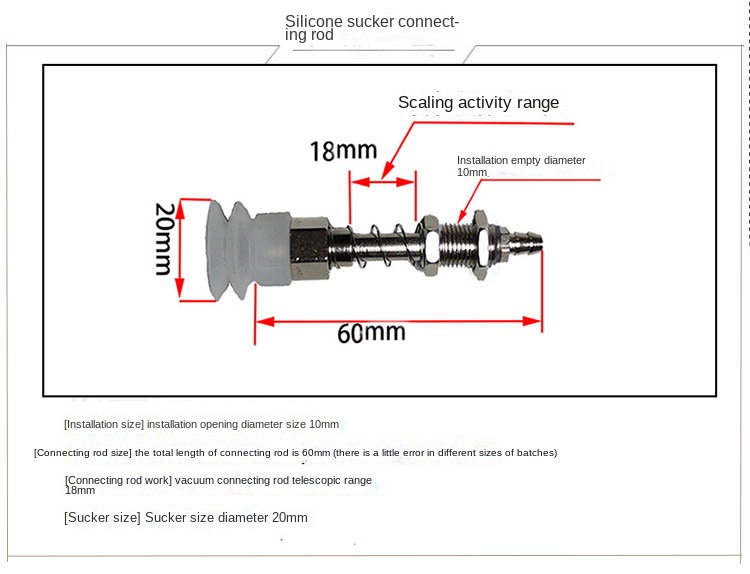

Silicone sucker rod

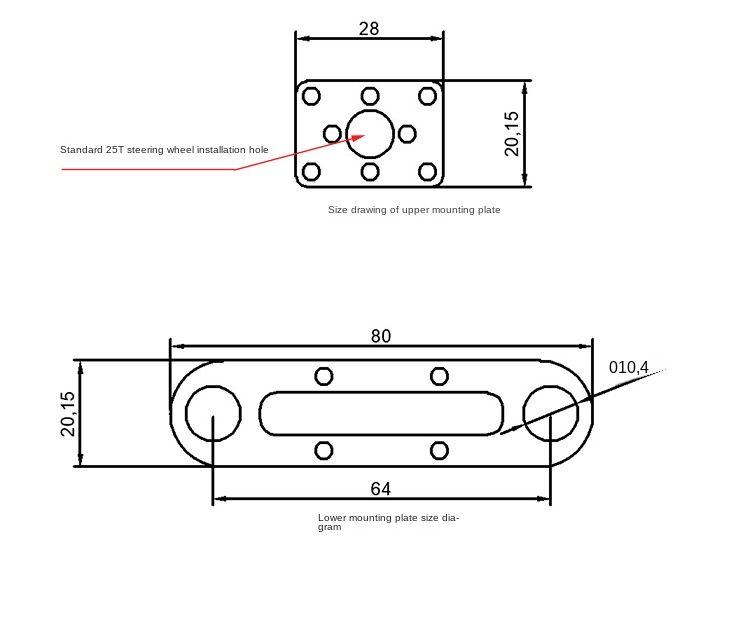

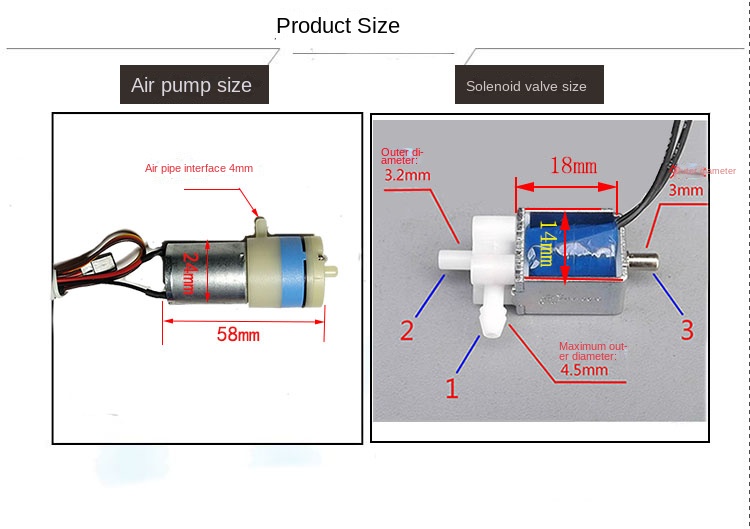

Installation size:Installation hole diameter 10mm
Connecting rod size:Total length of connecting rod 60mm (there is a little error in different sizes of batches)
Connecting rod operation:The telescopic activity range of vacuum connecting rod is 18mm

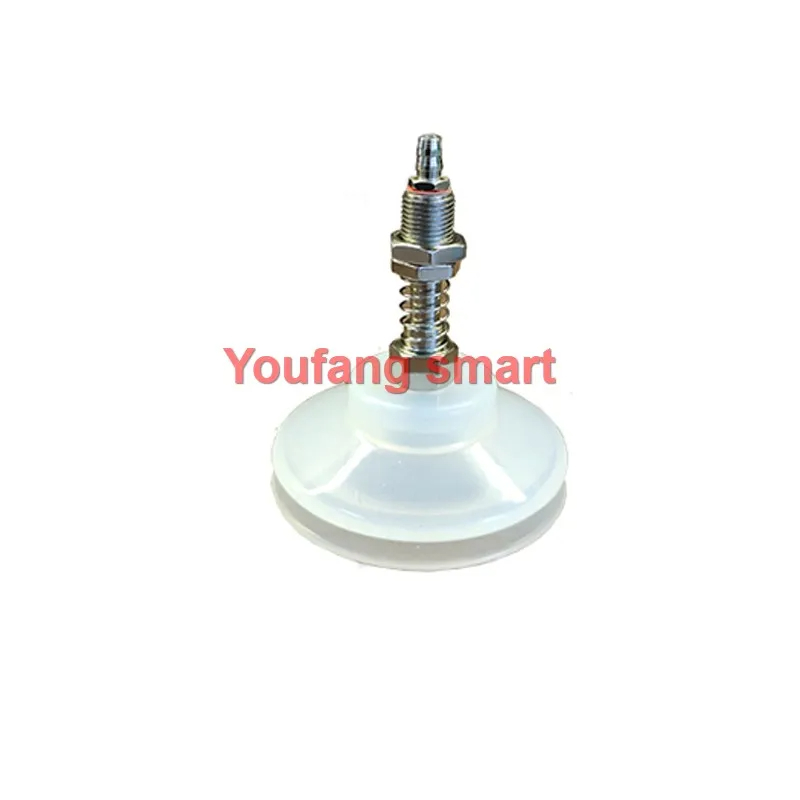

Suction Cup Size: The diameter of the suction cup is 20mm

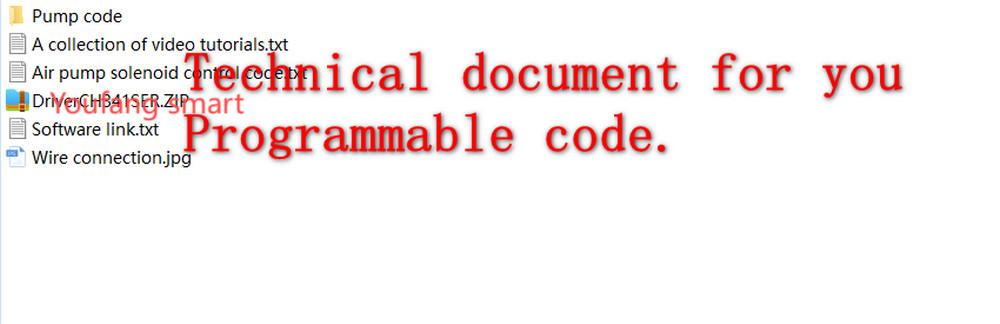

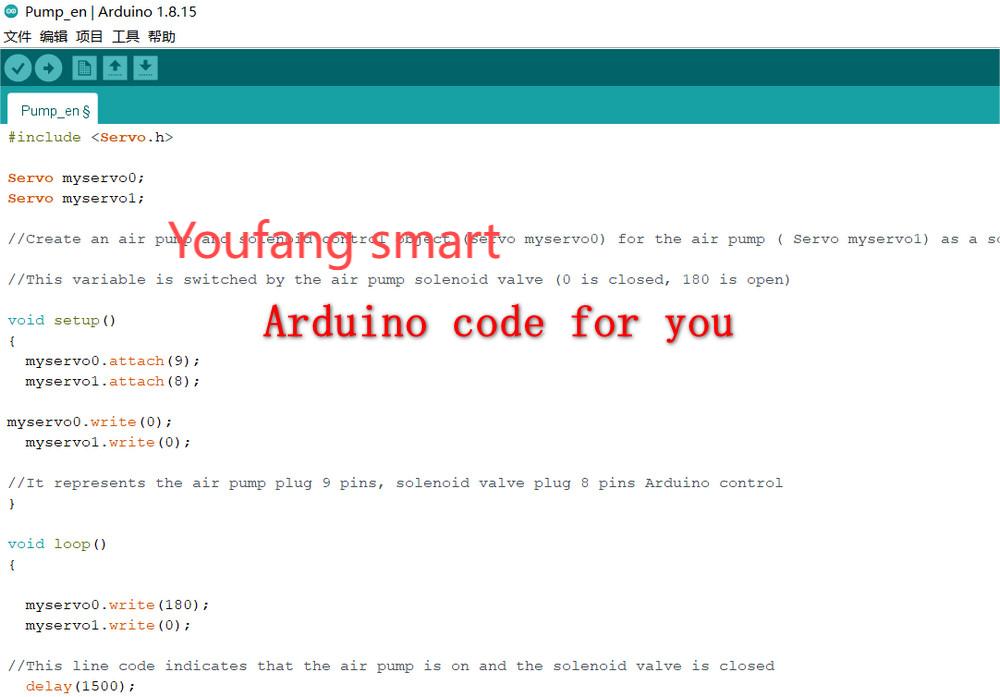

If you need this manual of Robotic arm air bump and development documentation, such as Arduino or STM32 or 51 open source code, please contact us and leave your email.
Best Quality, Best Service !!!
The most complete development and design, you deserve to own this engineering project, we do technology first, service first, not just sell goods
Packaging Details
- Unit Type:
- Package Weight: 0.400
- Package Size: 10x10x10
- Feature 1: Remote Control
- Feature 2: Diy robot
- Feature 3: PWN Cable
- Feature 4: Robotic Arm Air Pump Valve
- Feature 5: Metal
- Feature 6: For Arduino Robot Arm
- Feature 7: Various Parts
- Feature 8: PWM Electronic Switch
- Feature 9: Solenoid Valves
- Feature 10: Suction Cup
- Feature 11: Vacuum Pump
- Feature 12: UNO R3
- Feature 13: 0.3/1/3/6/10/20Kg Load
- Feature 14: Solenoid Valves
- Feature 15: Vacuum Pump
- Brand Name: YoufangSmart
- Is Electric: No Battery
- Hign-concerned Chemical: None
- Theme: Animals & Nature
- Theme: Transportation
- Theme: Fantasy & Sci-Fi
- Theme: Occupations
- Theme: Sports
- Theme: Music
- Warning: Inwaterability
- Origin: Mainland China
- Recommend Age: 14+y
- Choice: yes
- semi_Choice: yes
