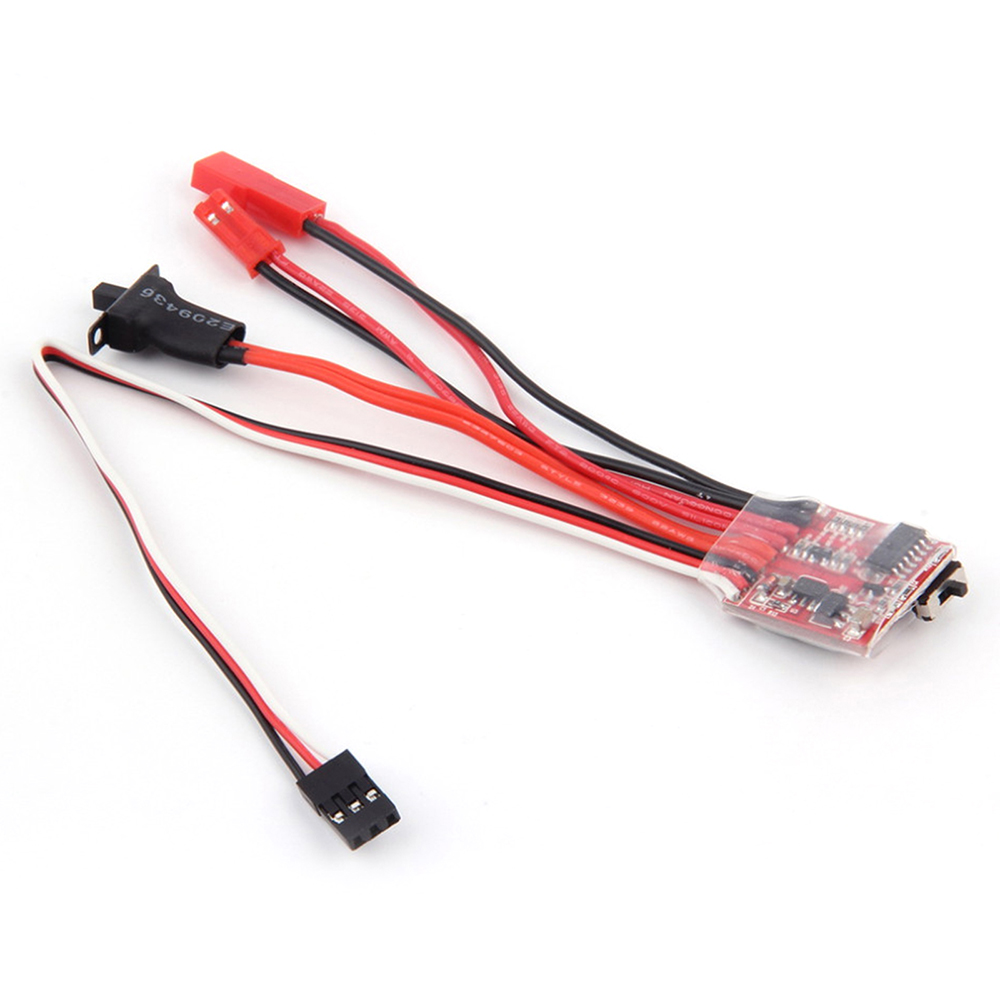

Micro ESC 20A 30A Brushed ESC RC ESC Electric Speed Controller 2S 4~8v for DIY Mini 1/16 1/18 1/24 RC Car Boat Tank w/Brake
4.9 (603 votes) | 3000 orders
Price:
US $16.30 - 29.30
Discount Price:
US $
9.95 -
16.07
-39%
- Color
-
-
Features:
1. Micro ESC: Compact and lightweight, easy to install and use.It's bidirectional 20A/30A miniature brushed ESC with brake for DIY mosquito/mini-z car.Designed for receiver and steering SERVO
2.Brushed ESC 2S: Suitable battery type: 2S Li-ion(7.4V) (not included)
3.Brushed ESC 1/24: For 1/16 1/18 1/24 RC Car Boat Tank RC Quadcopter, helicopter, multicopter and airplane.Function: forward, reverse, brake
4.Brushed Motor ESC: 20A ESC can work with 130/180/260/280/380 Brush Motor
5.RC ESC Connecting Rod: Short red (positive) and black (negative)------battery;
Long red and black(positive or negative is random)------motor;
Black red and white three-one line------CH2 of receiver
Description:

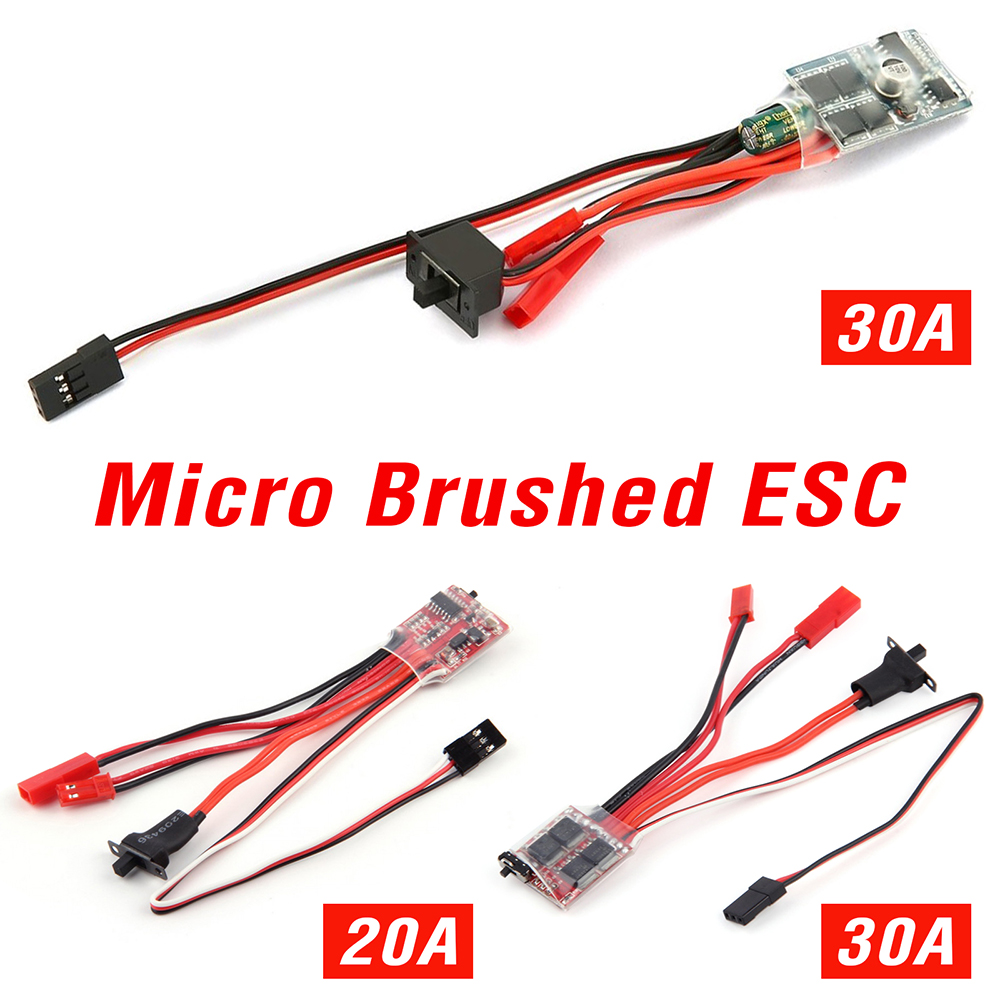

RC ESC 20A / 30A is bidirectional miniature brushed ESC with brake for 1/16 1/18 1/24 RC Car Boat Tank RC Quadcopter, helicopter, multicopter and airplane.Designed for receiver and steering SERVO.
Specifications:

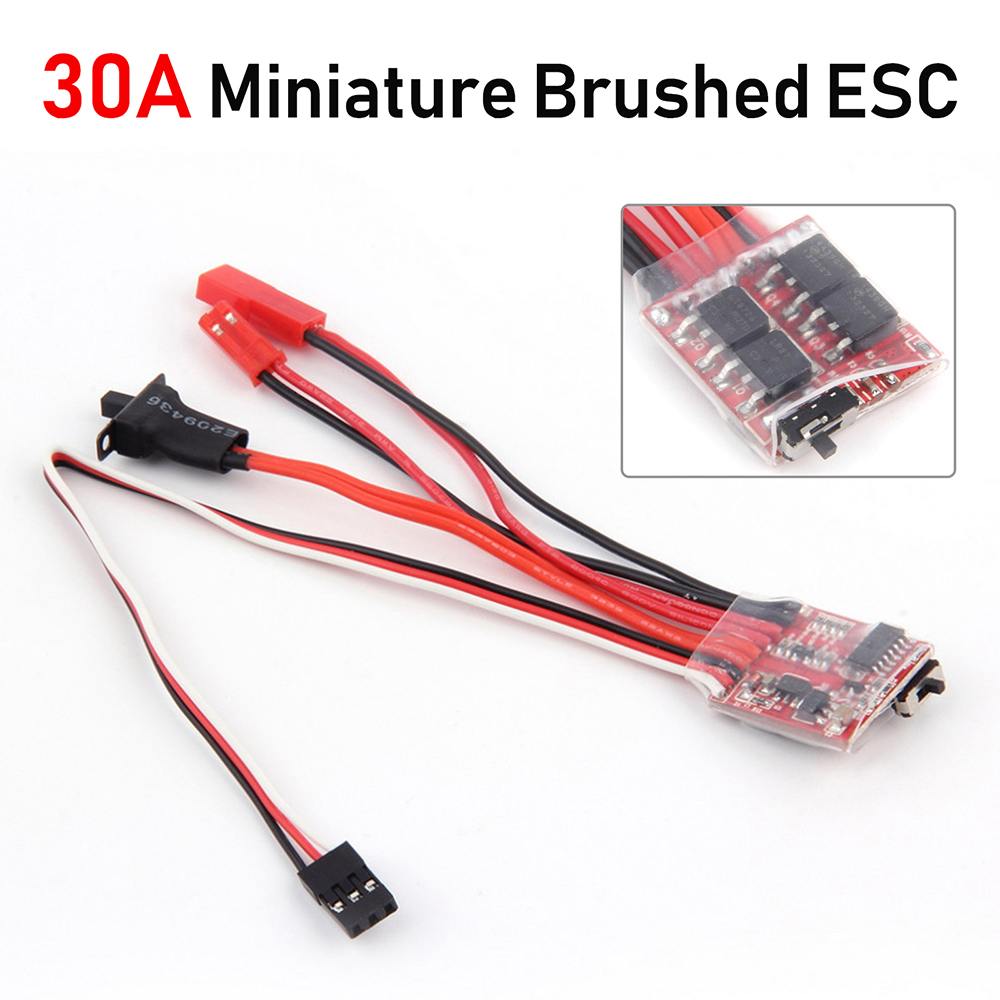

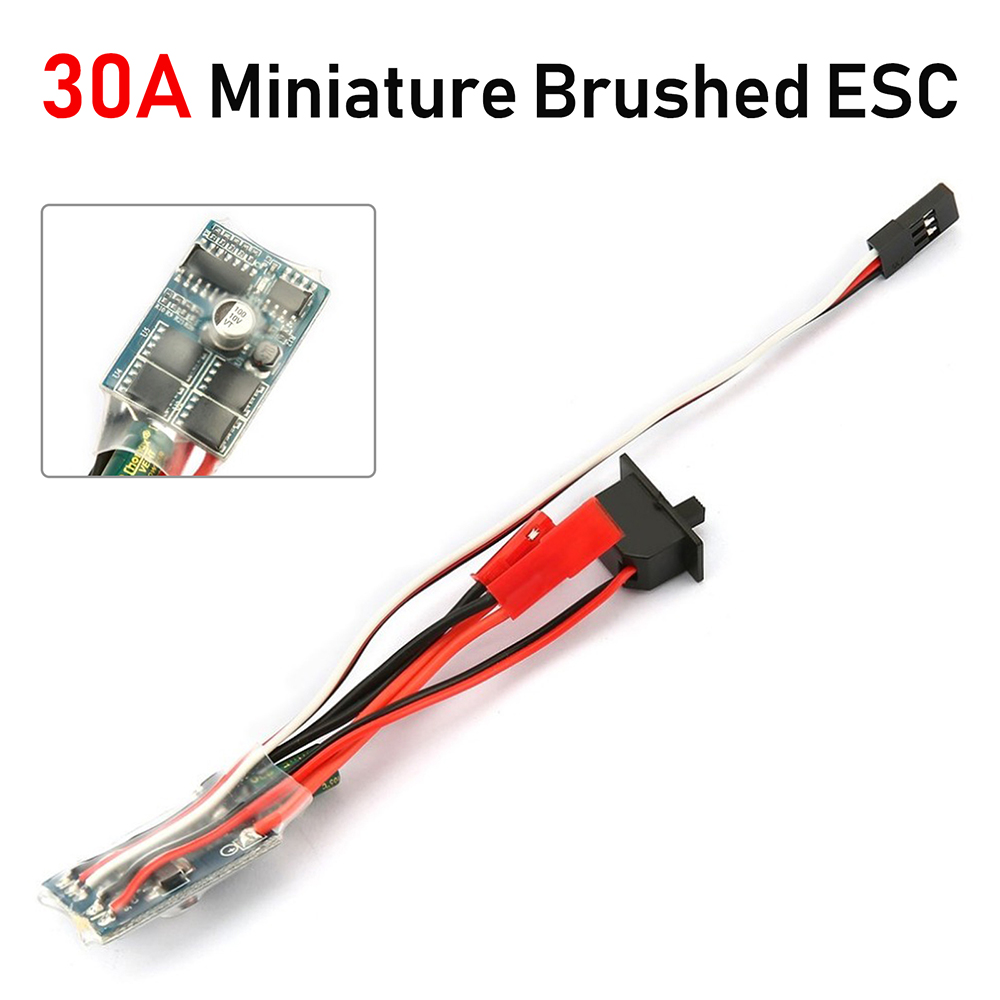

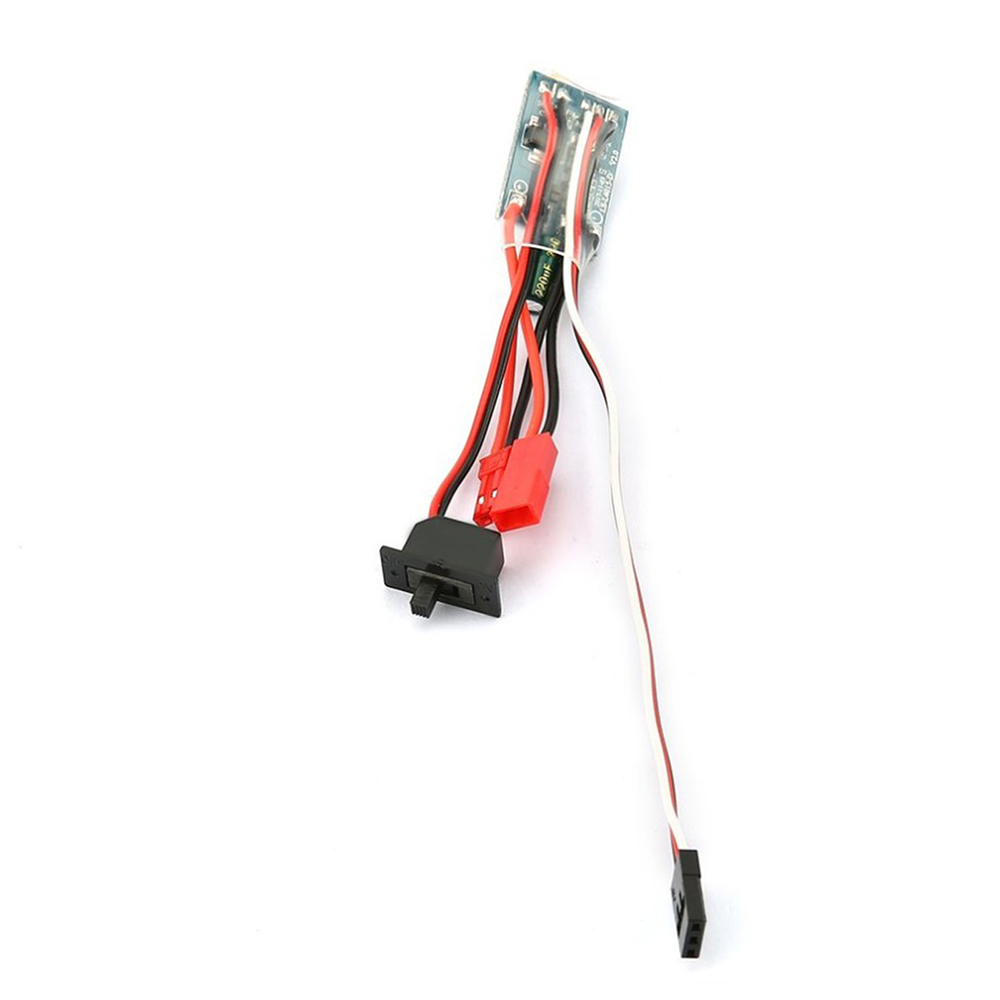

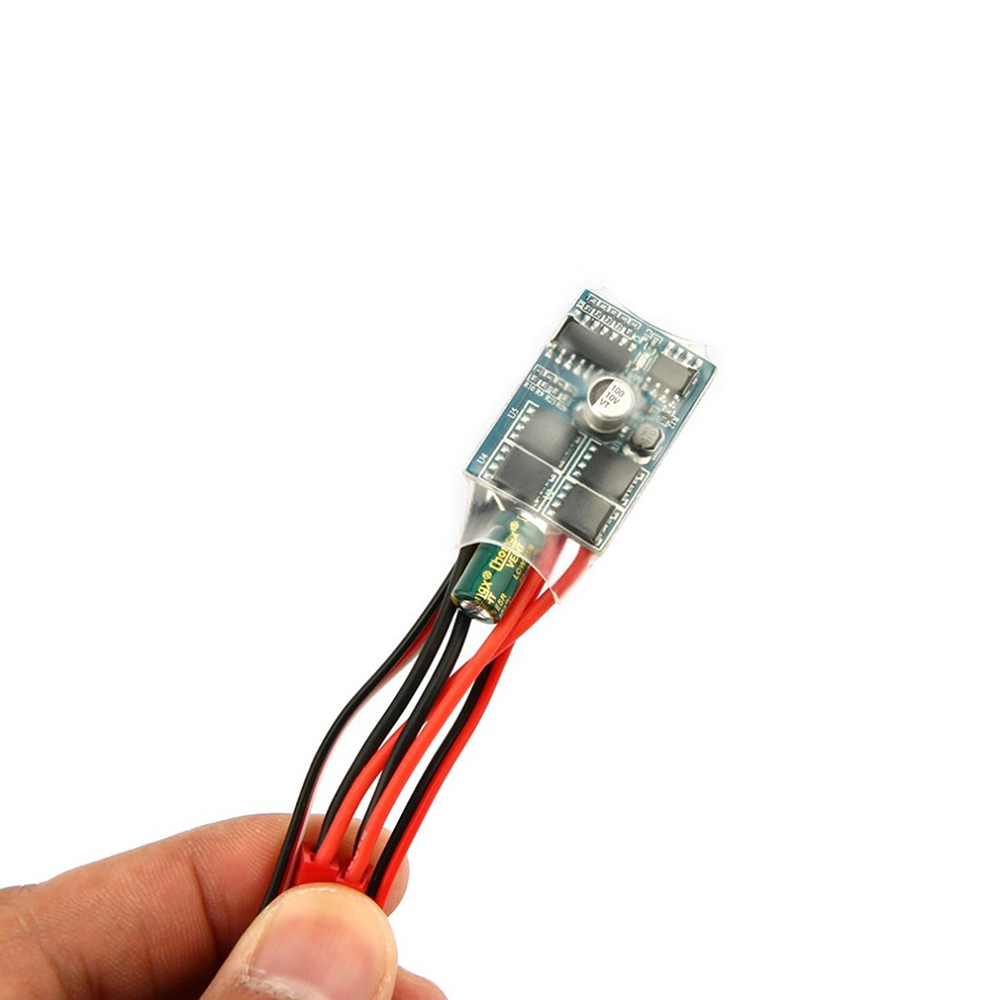

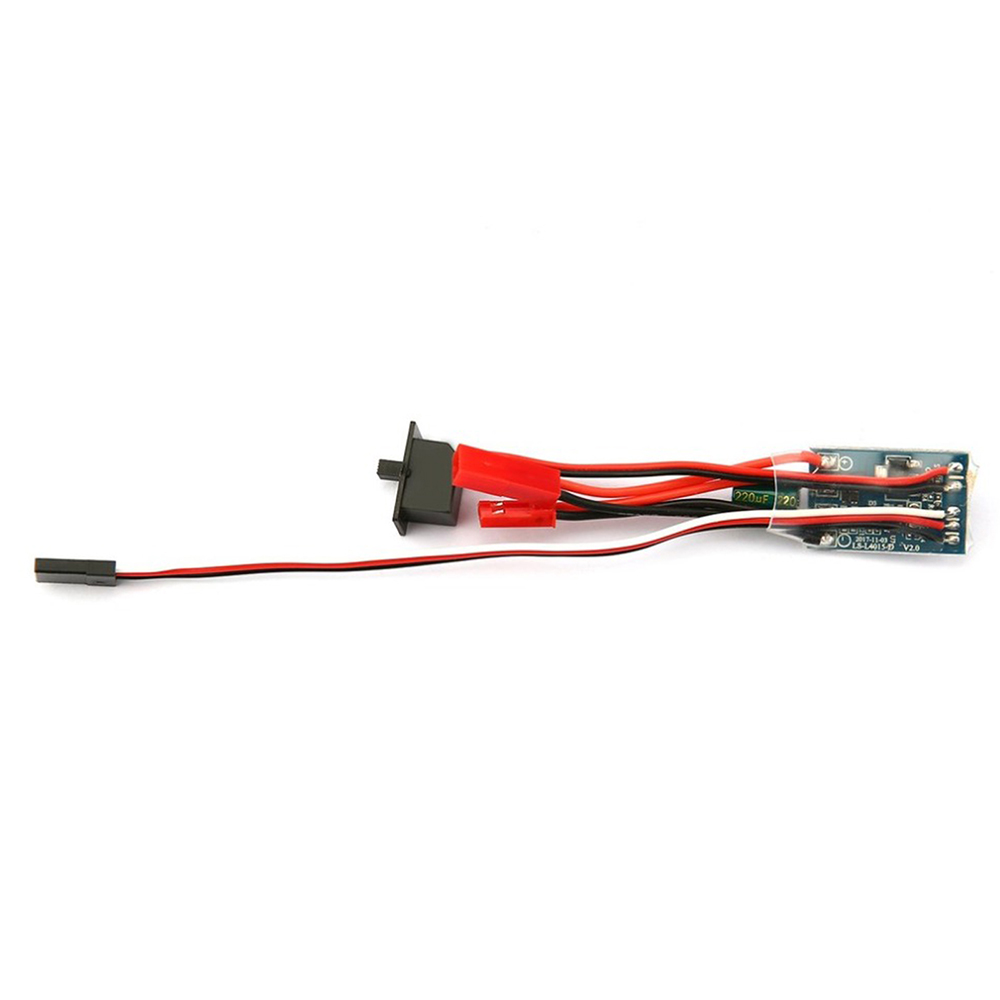

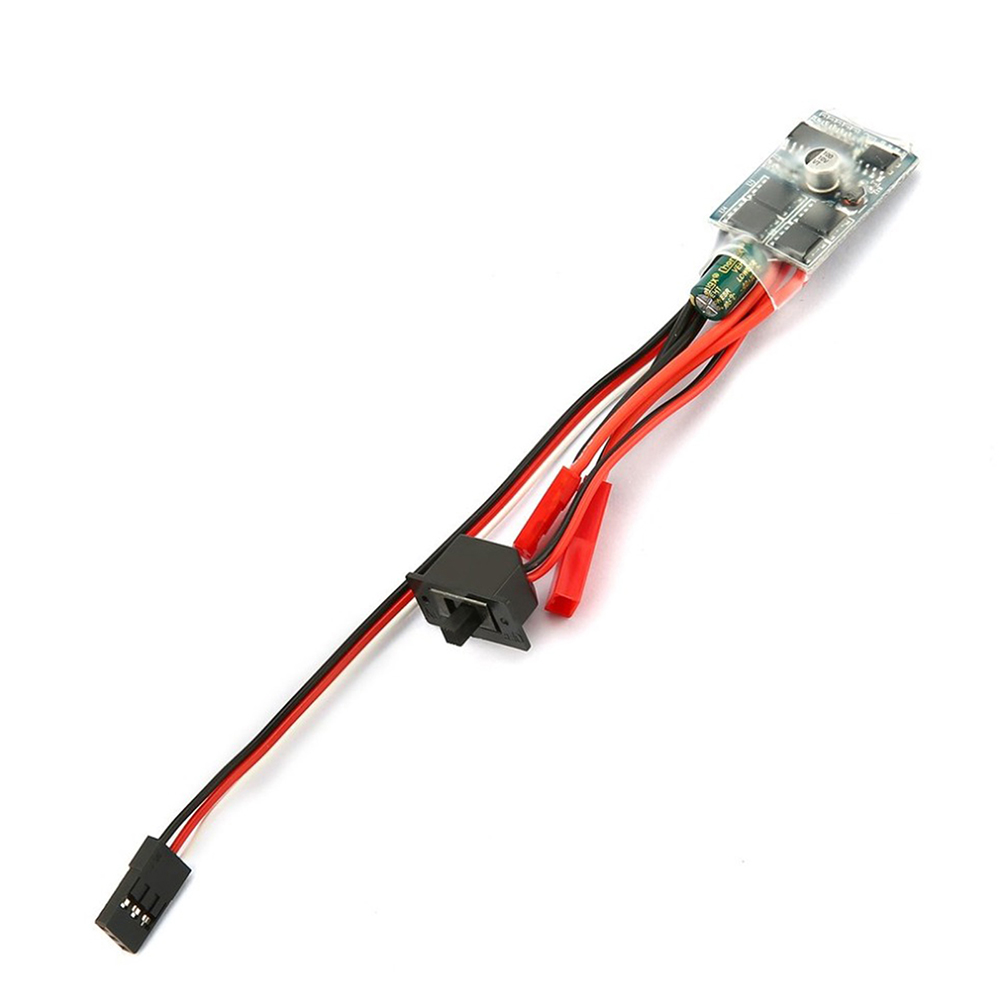

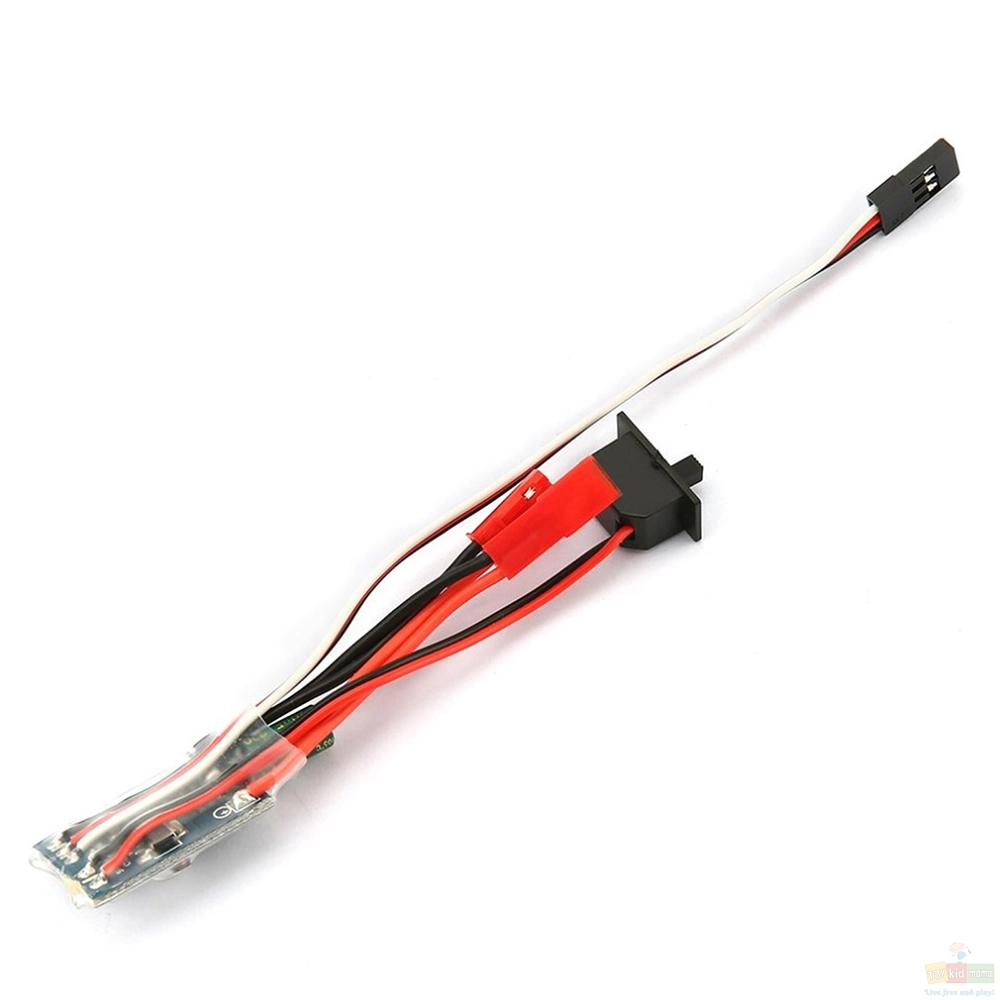

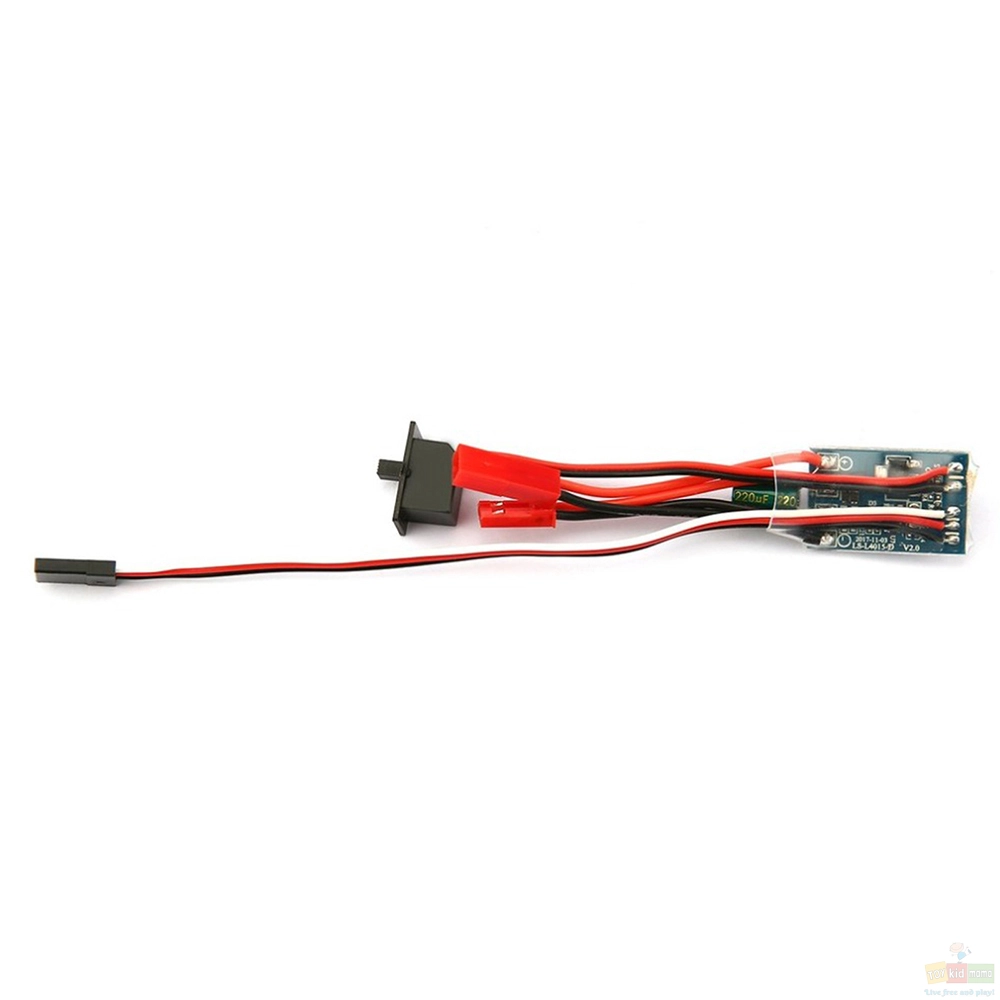

Name: 30A Miniature Brushed ESC(Blue Main Board)
Material: Composite material
Color: black & red
Size: 40*19*10mm
Input voltage: 4-8V
Electric current:
Go forward: 30A
Instant for peak value: 40A
Go backward: 20A
Braking value: 40A
UBEC output voltage: 5.7V
Output current: 1A

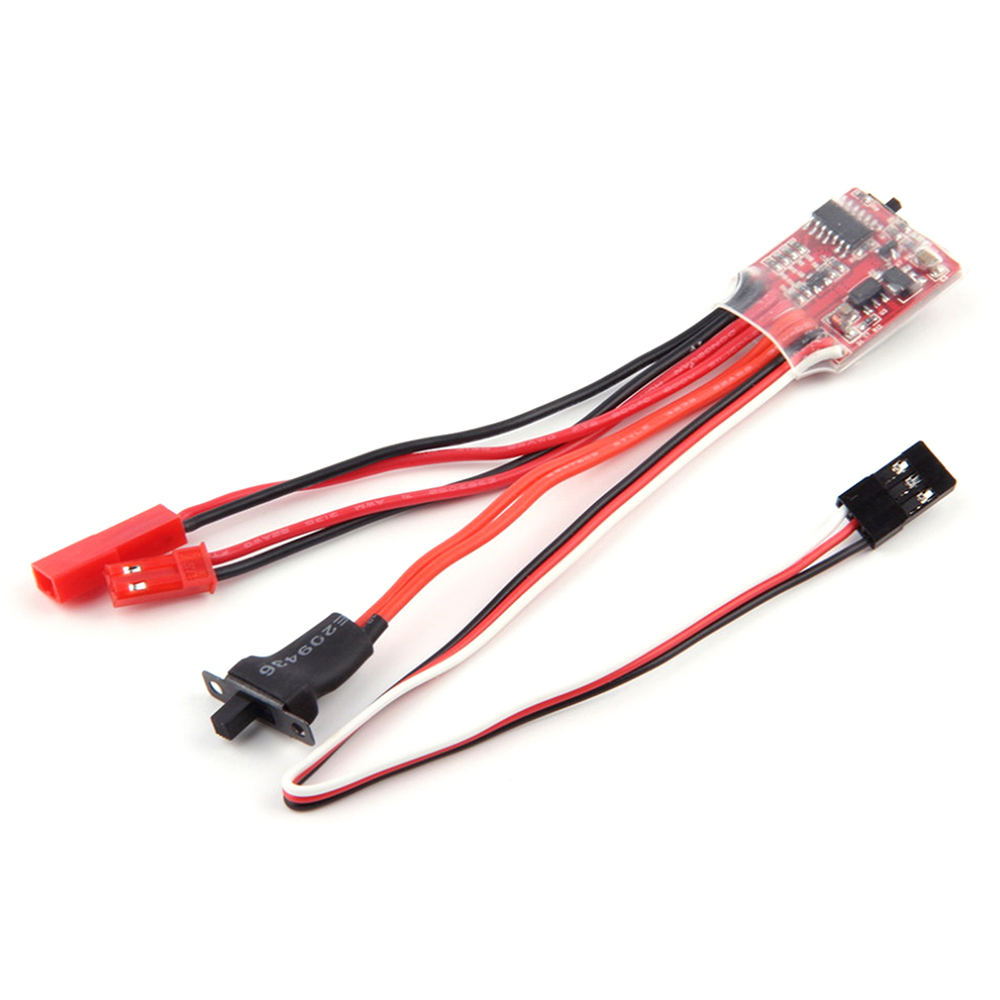

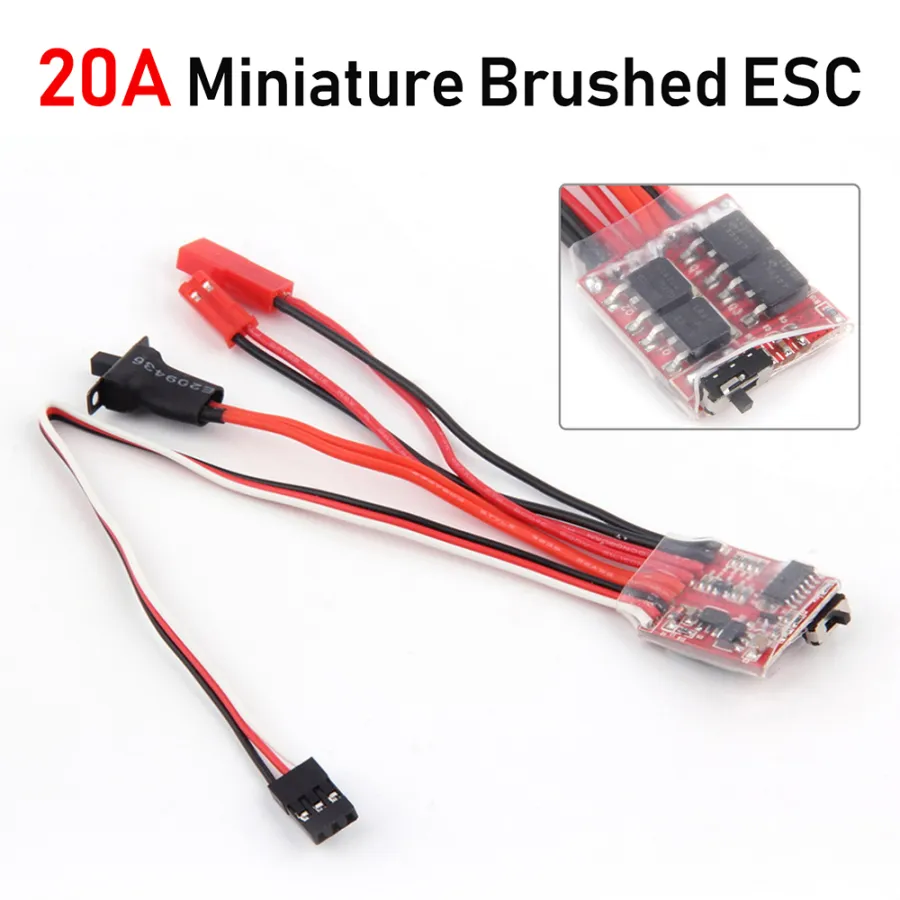

Name: 20A brush speed controller(Red Main Board)
Function: Forward, Reverse, Brake
Working voltage: 4.8V-8.4V
Dimensions(L*W*H): 35.0*22.0*6.0mm
Current(A): 20A
Driver frequency: 2KHz
Input: Li-Po 2S / Ni-Mh/Ni-cd 4-7cell
Constant current 20A Max 25A< 30s Pulsed 50A< 5s
Brake On / with brake
This ESC can work with 130/180/260/280/380 Brush Motor
Size: 20*20 MM

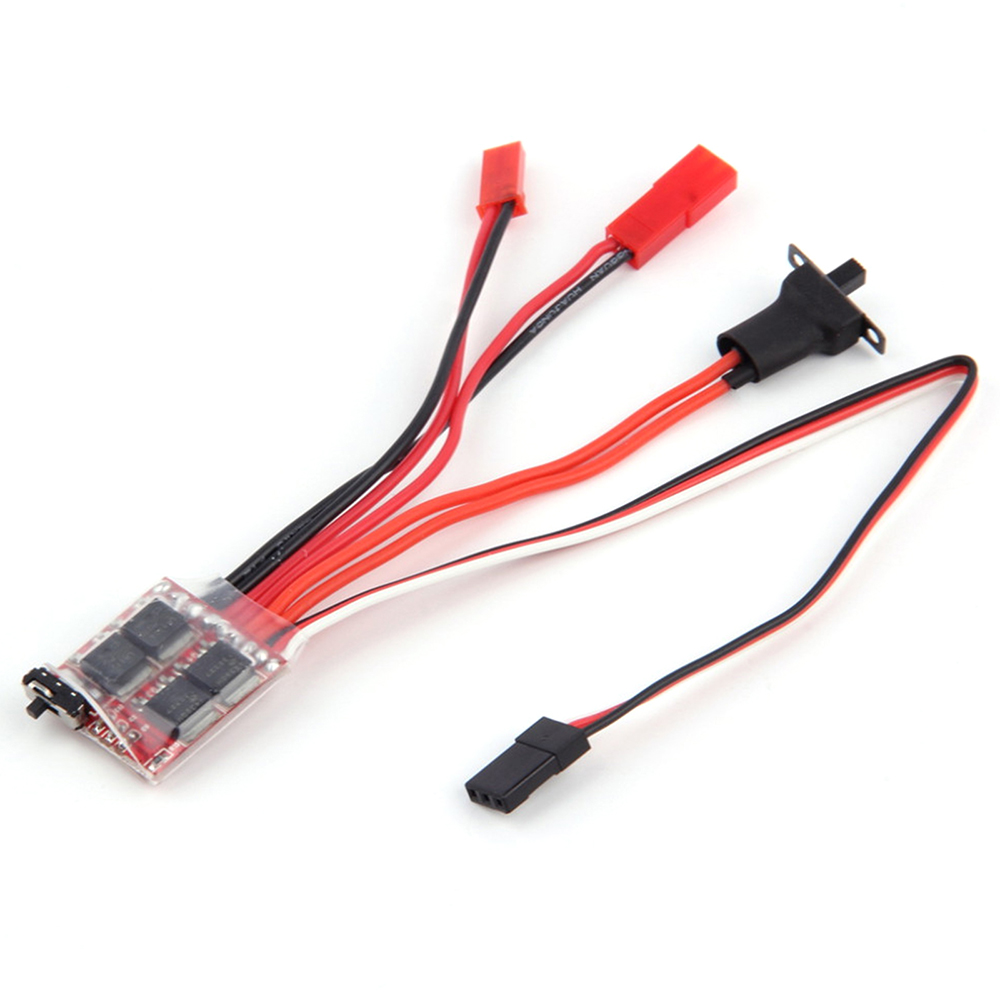

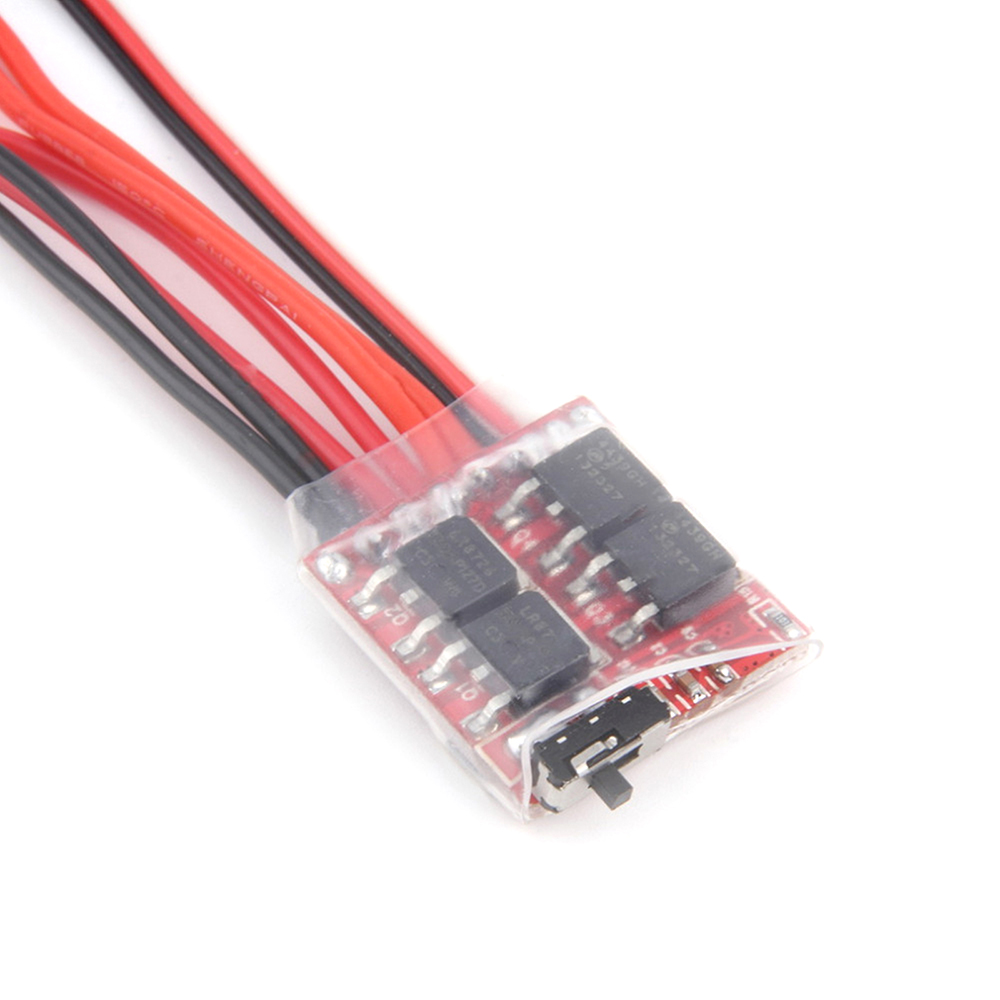

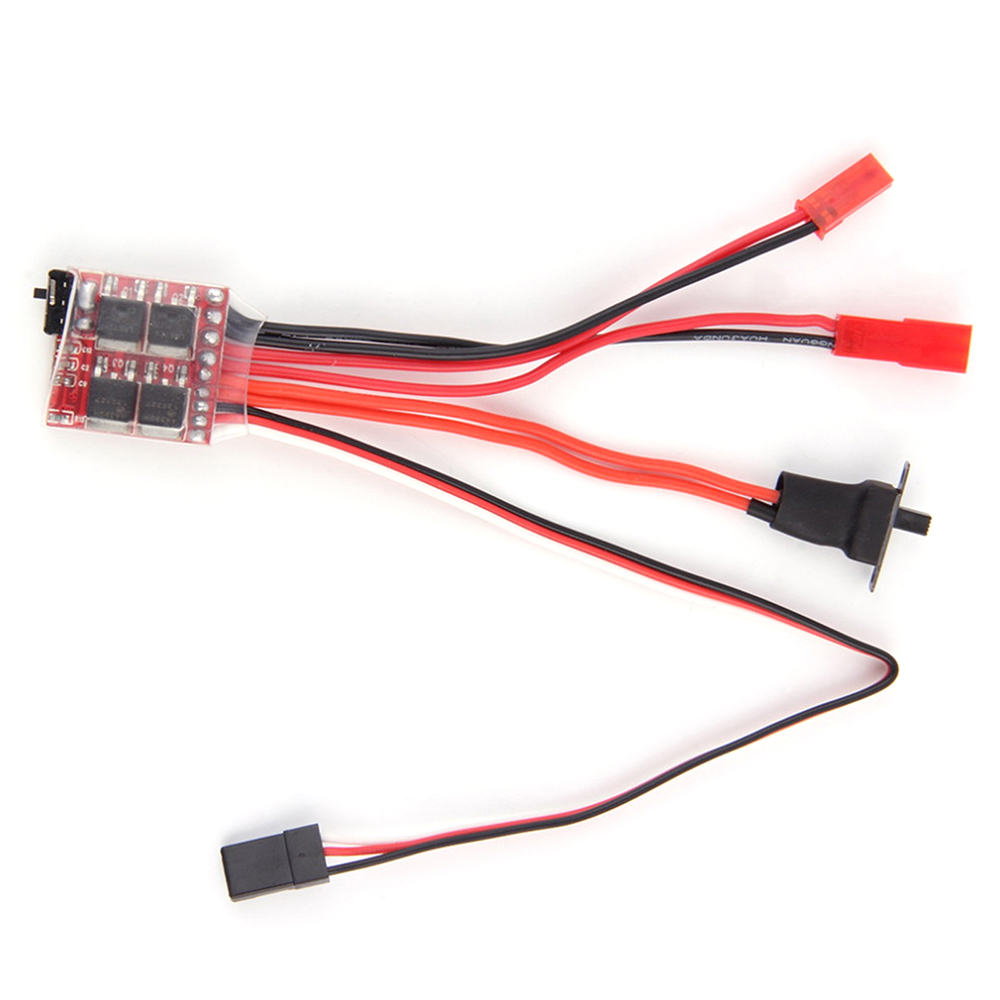

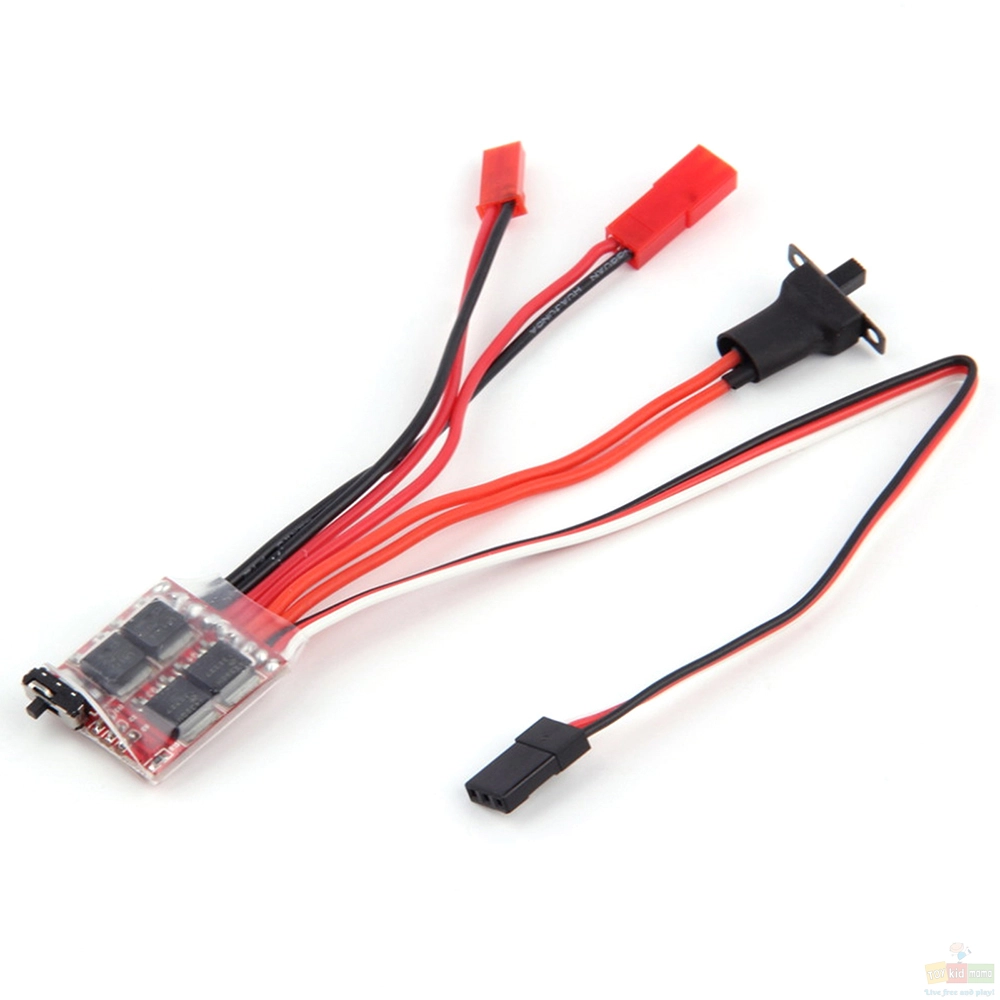

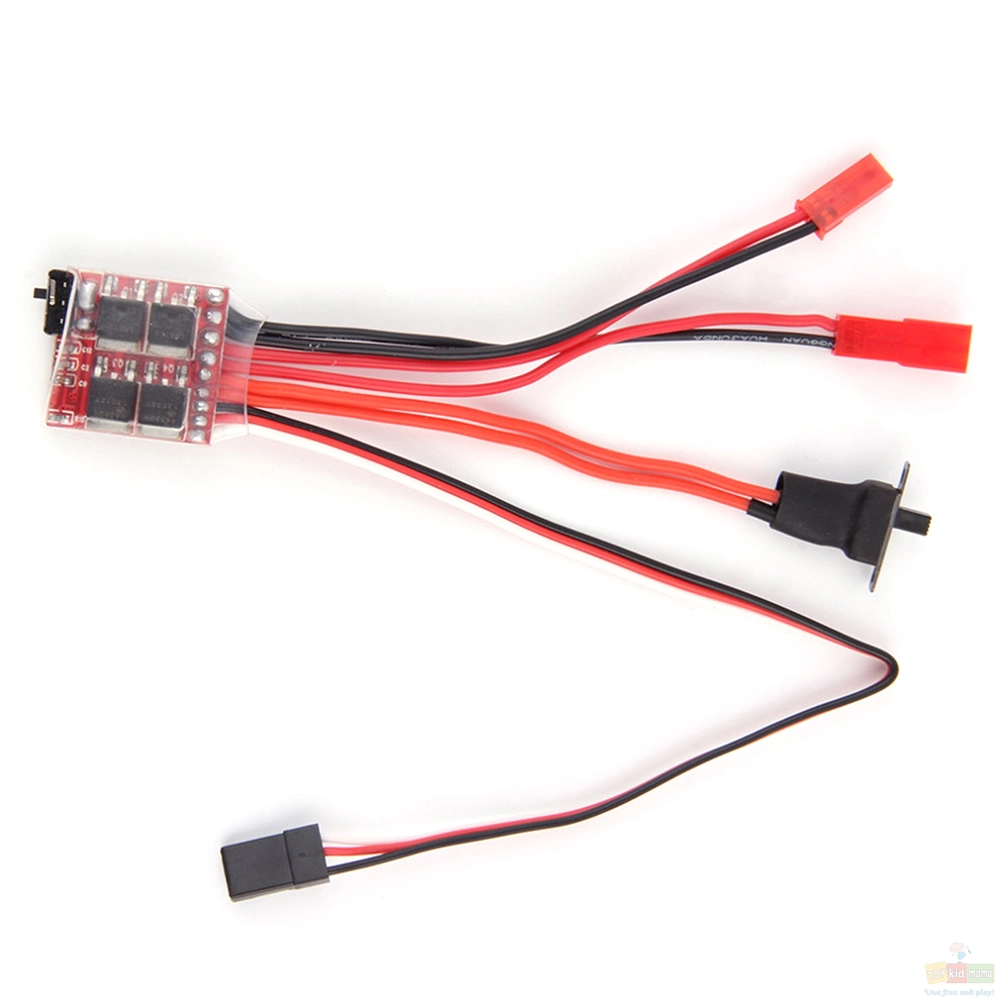

Name: 30A brushed speed controller(Red)
Material: Synthetic Material

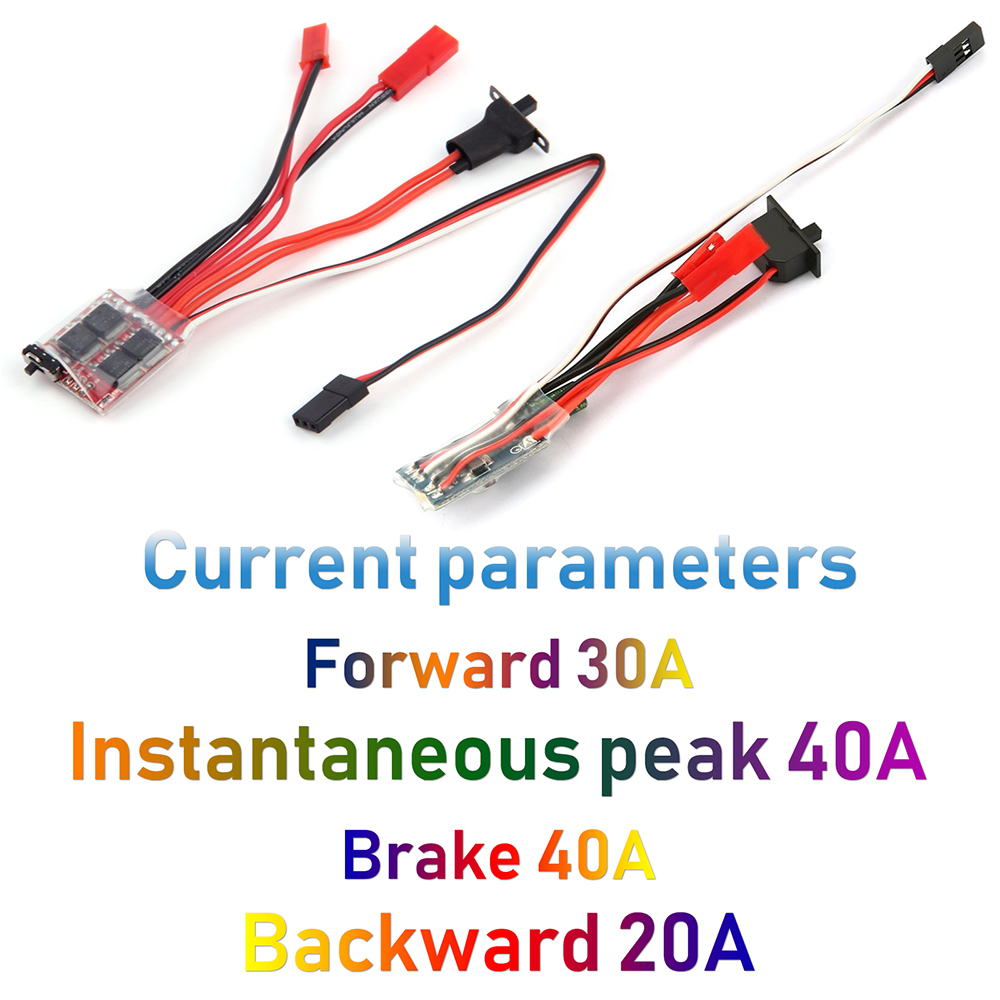

Current Parameters:
Forward 30A
Instantaneous peak: 40A
Back: 20A
Brake: 40A
UBEC Output: Voltage 5.7V, Current 1A (Supply receiver, servo power)
Voltage support: 4.8~ 8.4v can be directly on the 2s lithium (7.4V)
Function: forward, reverse, brake
Size: Approx.25 x 23 x 5mm/0.98 x 0.91 x 0.2"
Weight: Approx.13g (with line)
Package Included:
1x Brushed speed controller
Tips:

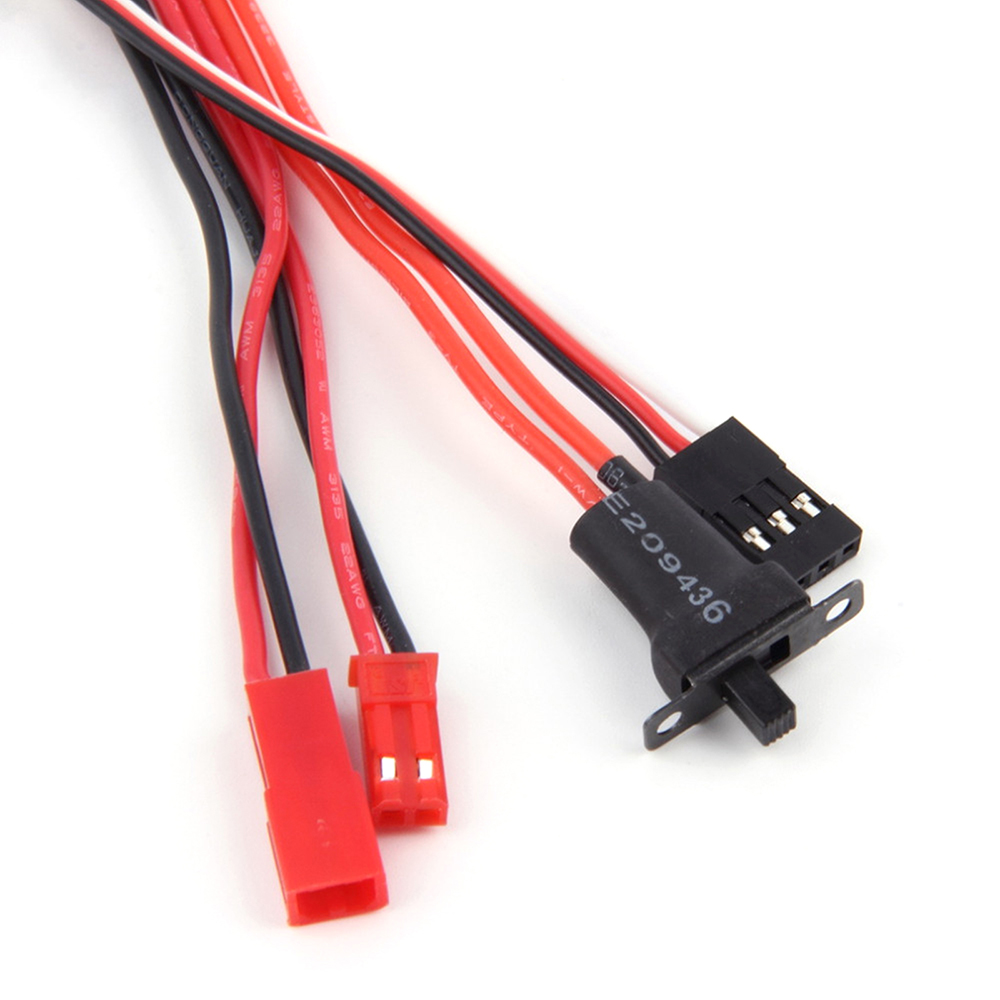

JST header by default, with a switch.

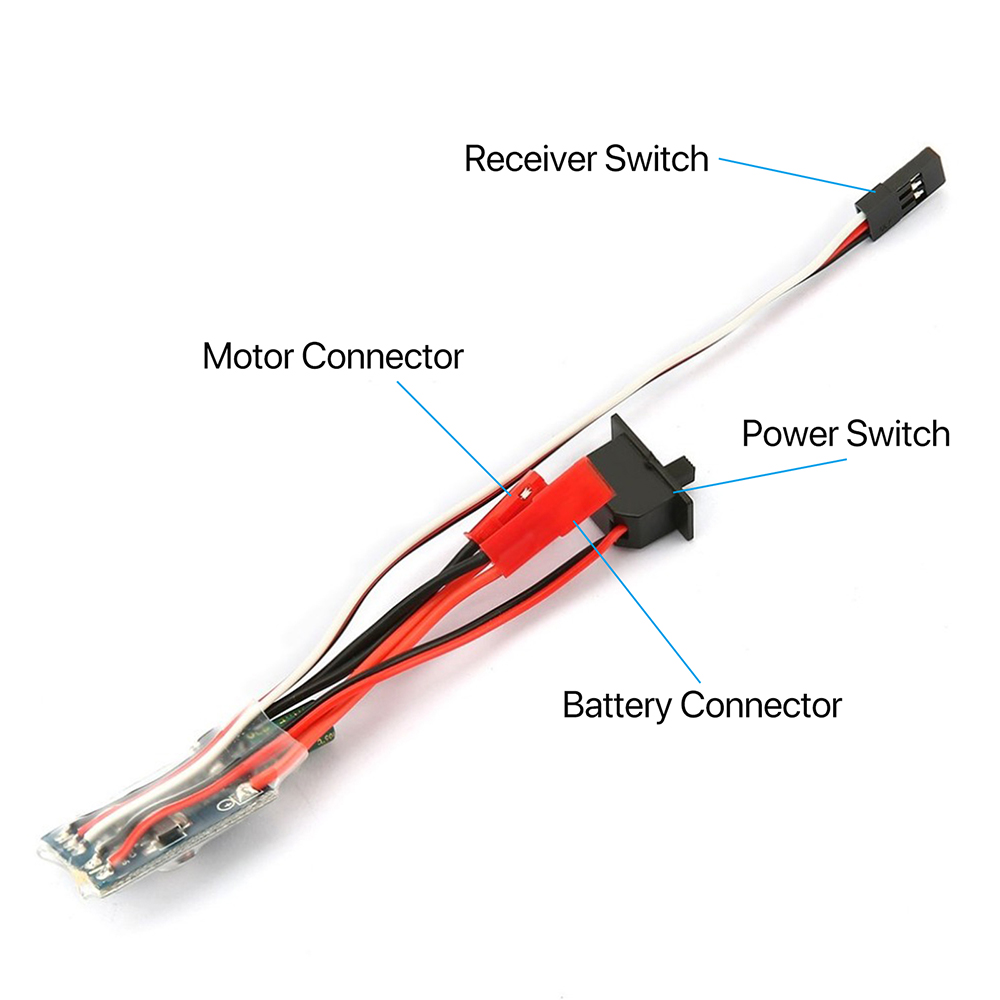

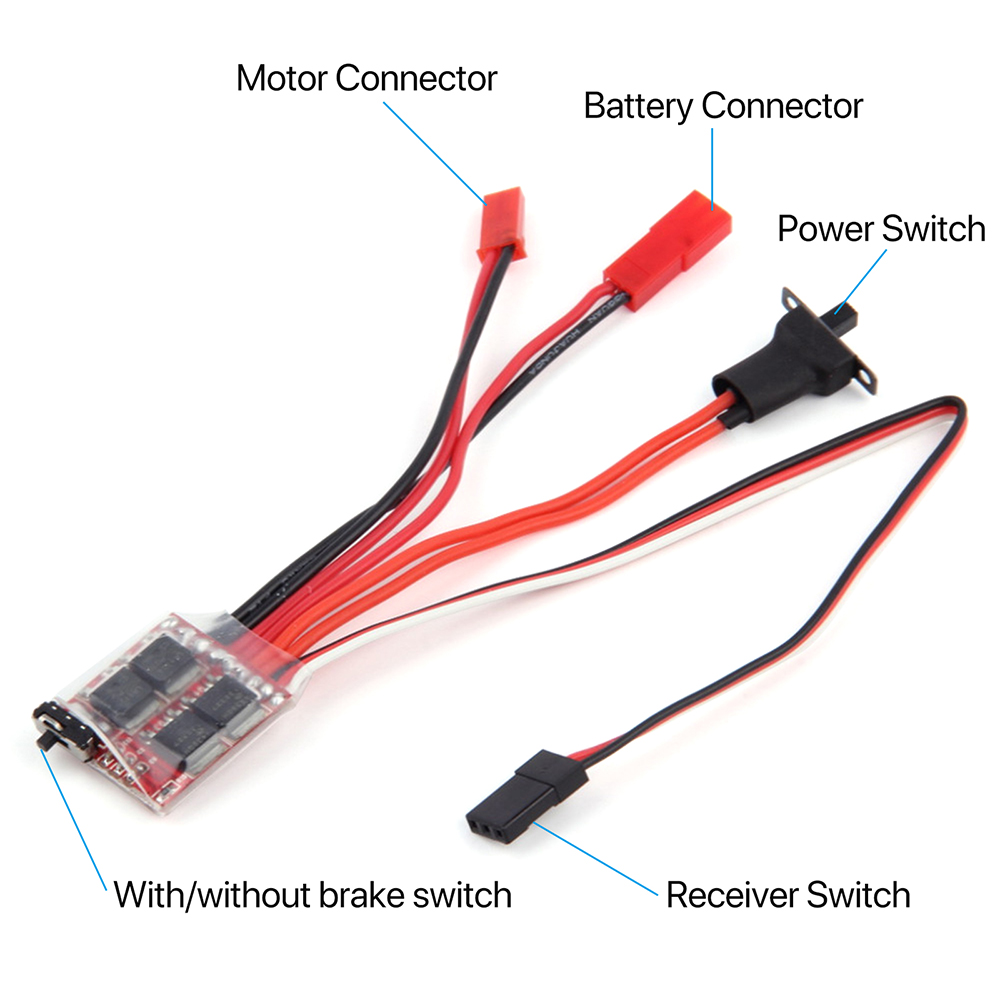

Wiring:
Battery (must dividends positive black and negative)
Motor (regardless of positive and negative)
Black red and white third-line -> receiver CH2 (usually black by the outside, white by stickers)
Adjustment:
ESC is set in the middle of the range, the new control generally need to fine tune the throttle.
The ESC does not light, is the median, throttle trim is controlled TH TRIM.
Note:
Only the above package content, other products are not included.
